Meanwell ELG-75-24DA-3Y 75.6W Constant Voltage LED Driver
ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V.
Emergency lighting LED driver with DALI-2 interface and automatic test function
For self-contained emergency lighting
For LED modules with a forward voltage of 10 – 54 V
SELV for output voltage < 60 V DC
Low profile casing (21 x 30 mm cross-section)
For luminaire installation
Compatible with Tridonic's LLE FLEX modules (ADV, EXC)
EM = Emergency
Nominal lifetime up to 100,000 h
Fixed output LED driver
Can be either used built-in or independent with clip-on strain-relief (see accessory)
Independent LED driver with cable clamps
Constant current LED driver
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
Output current 350 mA
Max. output power 30 W
BIS approval mark for art. no.: 87500737, 87500739.
Nominal lifetime up to 50,000 h
Self-contained emergency lighting LED driver with self-testfunction_ Non maintained operation_ For LED modules with a forward voltage of 10 – 54 V_ SELV for output voltage < 60 V DC_ For luminaire installation_ Compatible with Tridonic's LLE FLEX modules (ADV, EXC)_ EM = Emergency_ Nominal lifetime up to 100,000 h
Constant voltage/ PWM Output• Leading & Trailing edge dimmable• AC input: 200-240VAC• Built-in active PFC function• Efficiency up to 87%• Protections: Short circuit/ Over loading/ Over current/ Over temperature• Full protection aluminium housing• Cooling by free air convection• Suitable for LED lighting and moving signs
Product description
Fixed output built-in LED Driver
Constant current LED Driver
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
Output current 250, 300 or 350 mA
Max. output power 65 W
Up to 90 % efficiency
Nominal lifetime up to 50,000 h
5 years guarantee
Housing properties
Casing: metal, white
Type of protection IP20
Functions
Overload protection
Short-circuit protection
No-load protection
Burst protection voltage 0.5 kV
Surge protection voltage 1 kV (L to N)
Surge protection voltage 2 kV (L/N to earth)

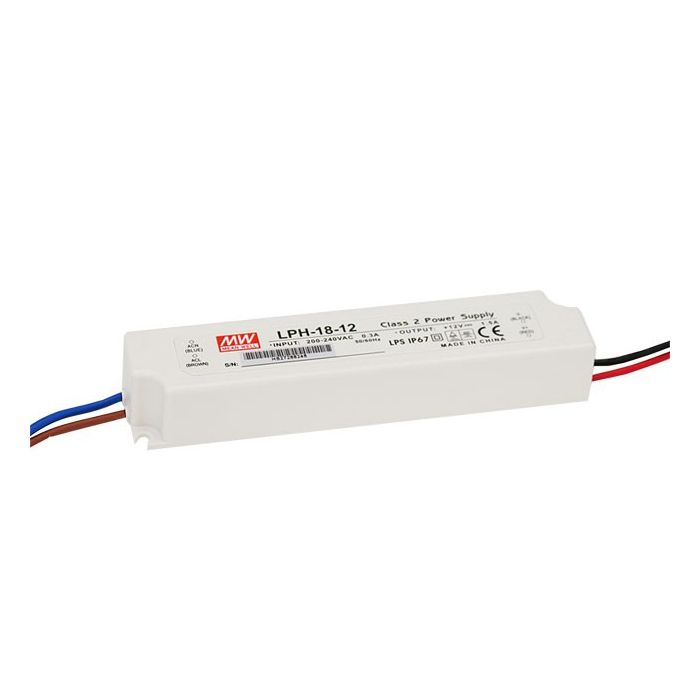

Constant Voltage Fully encapsulated with IP67 level Protections: Short circuit/ Overload/ Over voltage Other features: Universal AC input / Full Range Class 2 power unit Isolation class II, no F.G. Withstand 300VAC surge input for 5 seconds Cooling by free air convection Pass LPS 100% full load burn-in test Low cost, High reliability 2 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 20 Output Voltage 12V Dimmable (Type) No DC Output Adjustment N/A Dimensions 118 x 35 x 26 EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC Safety Standards UL1310, UL879 approved; Design refer to TUV EN60950-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30°C~+70°C
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Dimmable built-in constant current LED driver
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Adjustable output current between 1,100 and 2,100 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
Max. output power 100 W
Up to 92 % efficiency
Power input on stand-by < 0.2 W
Nominal lifetime up to 100,000 h
Osram OTi DALI 35/220-240/400 D LT2 UF L
Line frequency: 0 Hz | 50 Hz | 60 Hz
Versatile DALI window driver up to 75 W due to flexible output characteristic
Supply voltage: 220…240 V
Available with output current range: up to 700 mA
Direct Ultraflat sensor connection via LEDset (LS/PD LT2 LI UF Sensor)
Use with Ultraflat DALI sensor (LS/PD DALI LI UF Sensor)
Constant Lumen Output (CLO)
Non-isolated drivers
DALI-2 certified (Part -101,-102 and -207)
