Dimension 30W 12V 166x24x52mm Transformers Drivers Ballasts|Description|Product Driver Transformers Drivers Ballasts|Description|Type Constant Voltage Transformers Drivers Ballasts|Description|Qualifier LED Transformers Drivers Ballasts|Description|Secondary Voltage 12 V Transformers Drivers Ballasts|Description|Primary Voltage 220/240 V Transformers Drivers Ballasts|Description|Primary Current 0.17 A Transformers Drivers Ballasts|Description|Secondary Voltage Type DC Transformers Drivers Ballasts|Features|Power Rating (VA) 30 VA Transformers Drivers Ballasts|Features|Mounting Surface Transformers Drivers Ballasts|Features|Ingress Protection IP20 Transformers Drivers Ballasts|Features|Number of Modules 1 Transformers Drivers Ballasts|Material & Finish|Colour White Transformers Drivers Ballasts|Dimensions|Height 52 mm Transformers Drivers Ballasts|Dimensions|Width 166 mm Transformers Drivers Ballasts|Dimensions|Depth 24 mm Transformers Drivers Ballasts|Technical Data|Frequency 50/60 Hz Transformers Drivers Ballasts|Technical Data|Number of Phases Single Transformers Drivers Ballasts|Technical Data|Minimum Operating Temperature -15 Degrees C Transformers Drivers Ballasts|Technical Data|Maximum Operating Temperature 45 Degrees C Transformers Drivers Ballasts|General|CE Approved Y Transformers Drivers Ballasts|Features|Ingress Protection (EF005474) IP20 Transformers Drivers Ballasts|Material & Finish|Colour (EF003882) White Transformers Drivers Ballasts|Dimensions|Height (EF000040) 52 mm Transformers Drivers Ballasts|Dimensions|Width (EF000008) 166 mm Transformers Drivers Ballasts|Dimensions|Depth (EF000049) 24 mm Transformers Drivers Ballasts|Features|Mounting (EF000003) Surface Transformers Drivers Ballasts|Material & Finish|Colour (EF000007) White Transformers Drivers Ballasts|Dimensions|Height (EF008809) 52 mm Transformers Drivers Ballasts|Dimensions|Width (EF008808) 166 mm Transformers Drivers Ballasts|Dimensions|Depth (EF008810) 24 mm

Read more less

EM powerLED BASIC FX SC MH/NiCd 32 W Combined emergency lighting LED driver Product description Combined emergency LED driver for manual testing For self-contained emergency lighting Can be either used built-in or independent with clip-on strain-relief (see accessory) Max. output power 32 W Nominal lifetime up to 100,000 h 5 years guarantee Functions Adjustable output current between 350 and 700 mA via I-SELECT 2 plugs Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Suitable for emergency escape lighting systems acc. to EN 50172 1 or 3 h rated duration depending on connected battery Constant power output in emergency mode Battery management Intelligent charge system Deep discharge protection Polarity reversal protection for battery Short-circuit-proof battery connection Batteries NiCd or NiMH batteries 4 year design life 1 year guarantee For battery compatibility refer to datasheet, battery selection

Read more less

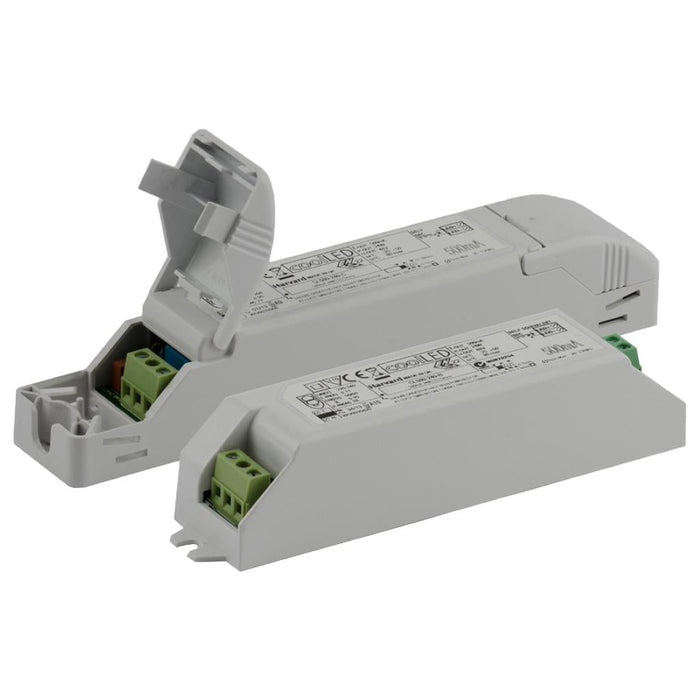

this product is not currently available , we would suggest an alternative please see below    https://www.easy-controlgear.com/products/mackwell-led-driver-dali-dimmable-33w-700ma-48v?_pos=2&_sid=78b811065&_ss=r Product Details Harvard CoolLED LED Driver provide a high-performance solution for powering high-brightness LEDs from a mains supply. It has an ability to control individual LED luminaries and simultaneous control of all or specified groups. High Efficiency and Long-Life design ensure cool operation and long life with extra benefit of a very low off power. Isolated DALI interface. Constant current output. Self-resetting thermal trip. Double insulated, electrical efficiency class II. Up to 88% efficiency. LED string fault reporting. Isolated DALI interface. Lamp fault reporting checks on LED string volts. · Isolated DALI interface · Constant current output · Self resetting thermal trip · LED string fault reporting · Lamp fault reporting checks on LED string volts Specifications Technical data Information Brand Harvard Power Systems Commodity 8504409090 Item number CL700D2-240-C Warranty pack 60 Months Bring-In Series CL RoHS Compliant Description AC-DC 33W LED driver Constant Current mode (CC); Max. output 48Vdc at 0.7A; IP20; Dimming with DALI; Remote control Packing Quantity 40 Application LED EN 61347 Net weight (gram) 130 Technology AC/DC Constant Current C.C. Format Box Type - Enclosed Output Power (W) 33 Output Voltage (V) 48 Output Current (A) 0.7 Input Voltage (V) 220 - 240 IP Rating IP20 Width (mm) 32 Height (mm) 32 Depth (mm) 180 Control Signals Remote Sense Dimming Technology DALI

Read more less

Brand Power LED Style Constant Current Wattage (w) Max 18w Milliamps 700mA Manufacturer's Code PCC70018TD Dimmable Yes - TRIAC Length (mm) 130mm Width (mm) 44mm Height/Depth (mm) 28mm This LED Driver is Suitable for | Output Current | | Voltage Range | | Max Output Power | 700mA 13 - 26V 18 W

Read more less

Triac leading edge phase control main dimmer. Idealy suited to Ecopac ELED triac dimmable LED Drivers, can also be used with other triac dimmable drivers.  These high quality dimming modules can be fitted to most dimmer plates with ease.  Other features: For use with resistive and inductive loads Module case ultrasonically sealed to reduce buzzing Smooth dimming operation from 0-100% light output Integrated over temperature protection fuse 3 years warranty

Read more less

Weight 0.11 kg Voltage (max/rated) 24 Current (amps) 500mA Power (watts) 12 R&N (mV) 55 Efficiency (%) 80%

Read more less

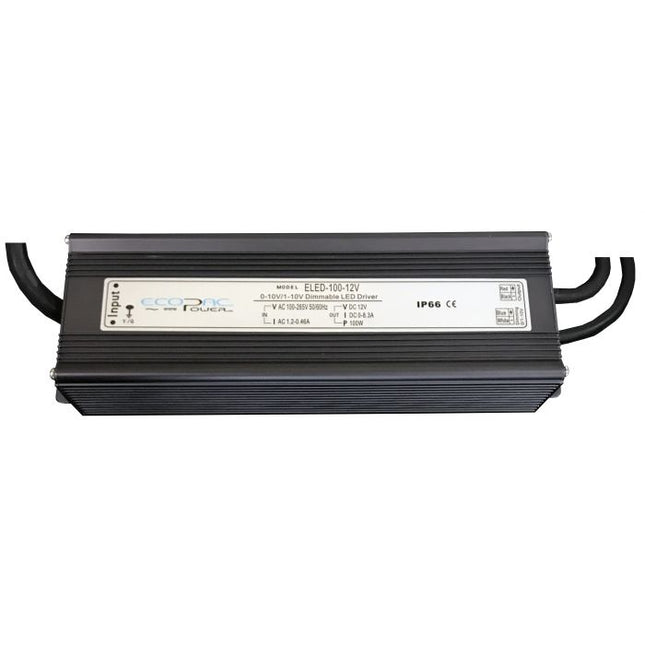

Constant Voltage Design 12V or 24V Output Dimmable using leading edge & trailing edge Triac Dimmers PWM Output 3 Years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage Choose Option Dimmable (Type) Triac Leading edge & Trailing edge Dimensions 230x70x46mm EMC Standards EMI according to EN55015, EMS according to EN61000-3-2; EN61000-3-3 Input Voltage 180-264VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-100P-T.pdf

Read more less

Constant current, traic dimmable LED driver, output current level selectable by DIP S.W. Support Leading edge (Triac) and Trailing edge (ELV) dimmer Dimming range from 40VAC to 240VAC Built-in active PFC function Class 2 power supply. Full protective plastic housing Dimming effect smooth, no flicker Protections: Short circuit, over load, over temperature Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so onMore Information Manufacturer EUCHIPS Output Wattage (W) 12 Output Current Selectable Dimmable (Type) Triac Leading edge & Trailing edge Output Voltage Range (V) 9-40VDC DC Output Adjustment Selectable Dimensions 150 x 43 x 29 mm Input Voltage 220-240VAC Output Voltage Options Single Working Temperature -20 ~ +50C PDF Datasheet EUP20T-1HMC-0 New.pdf

Read more less

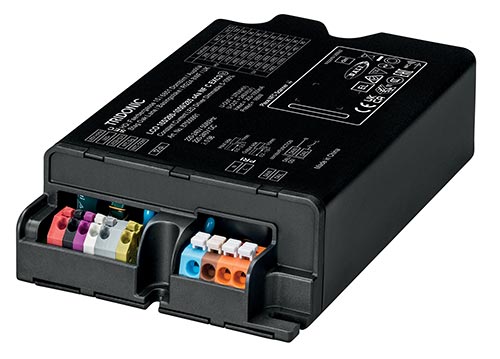

Driver LCO 165W 200–1050mA 285V one4all NFC C EXC3 excite NFC outdoor series Product description Dimmable built-in constant current LED driver Dimming range 5 – 100 % (min. 10 mA) For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer Max. output power 165 W Up to 93 % efficiency Lowest power input on stand-by < 0.16 W Nominal lifetime of 100,000 h and 8 years guarantee Interfaces Near field communication (NFC) one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration via mains) U6Me2 (configuration of chronoSTEP 2 via mains) Terminal blocks: 45° / 0° push terminals Functions Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains) Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2, ready2mains) Dimming through mains voltage (inputDIM) Enhanced constant light output function (eCLO) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Configurable external temperature management (ETM) Intelligent Temperature Guard (ITG) Intelligent Voltage Guard Plus (IVG+) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency In-field programming possible after installation with NFC interface and ready2mains High overvoltage protection: up to 10 kV asymmetric (protection class I and II) Typical applications Road, street and industry

Read more less

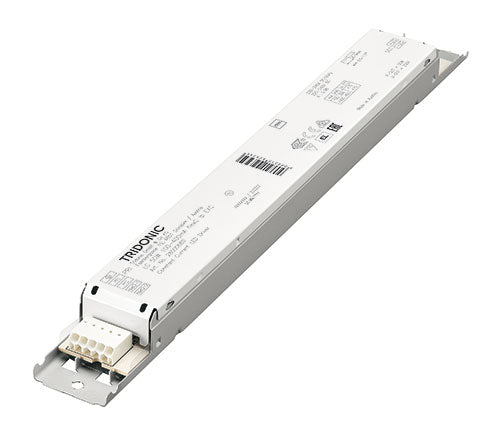

Driver LCA 60W 900–1750mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 60 W Up to 90 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

obsolete replaced by the  Alternative  Dali dimmable Constant current design Protections: Short circuit/ Overload/ Over voltage   Other Features: Built-in PFC function (PFC>0.95) Cooling by free air convection Up to 80% efficiency Fully isolated, delivering up to 15W of power Dali control standard IEC62386 Dali control input <2mA, 5-100% logarithmic dimming rangeMore Information Manufacturer Ecopac Power Output Wattage (W) 15 Dimmable (Type) DALI Dimensions 95x 37x 18mm EMC Standards EN61547, EN55024, EN61000-4-2, 3, 4, 6, 8, 11, EN61000-3-2, EN61000-3-3 Input Voltage 100-240VAC Safety Standards EN60598 Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet ELED-15-Dali_Series.pdf

Read more less

The Ecopac Power ECP100-24VF-1 slimline constant voltage LED driver is ideal for concealment where space is restricted, such as hiding behind a strip. Short circuit, over temperature and over loading protection are all standard features.  Ecopac Power LED Drivers are supplied with a 3 year warranty.  Other features: Slim line LED Driver Universal AC input/ Full range 180-264VAC Input Frequency 50/60Hz 24V Constant voltage output 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 12V Dimmable (Type) No DC Output Adjustment N/a Dimensions 320.6x 26.8x 18.2 (LxWxH) mm EMC Standards EN55015, EN61000-3-2; EN61000-3-3; EN61547 Input Voltage 180-264VAC Safety Standards EN61347-1,EN61347-2-13 Working Temperature -20~+45°C PDF Datasheet ECP-100-VF-1.pdf

Read more less
