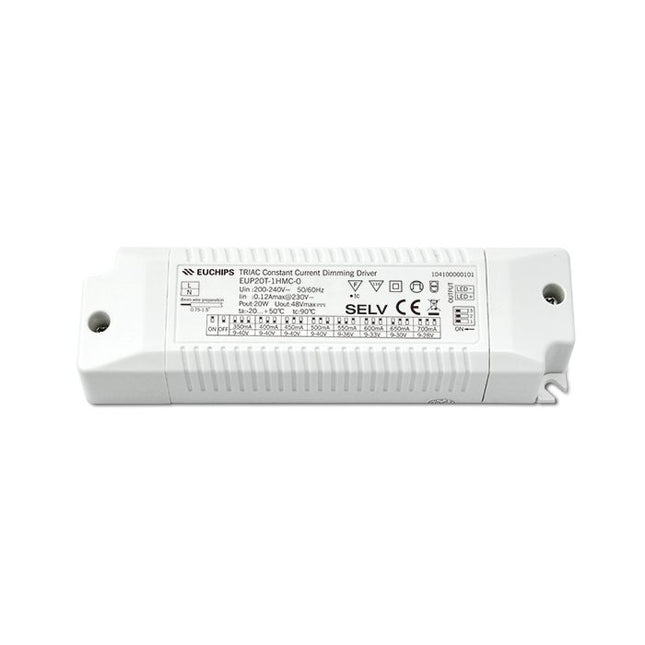

Constant current, traic dimmable LED driver, output current level selectable by DIP S.W. Support Leading edge (Triac) and Trailing edge (ELV) dimmer Dimming range from 40VAC to 240VAC Built-in active PFC function Class 2 power supply. Full protective plastic housing Dimming effect smooth, no flicker Protections: Short circuit, over load, over temperature Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so onMore Information Manufacturer EUCHIPS Output Wattage (W) 12 Output Current Selectable Dimmable (Type) Triac Leading edge & Trailing edge Output Voltage Range (V) 9-40VDC DC Output Adjustment Selectable Dimensions 150 x 43 x 29 mm Input Voltage 220-240VAC Output Voltage Options Single Working Temperature -20 ~ +50C PDF Datasheet EUP20T-1HMC-0 New.pdf

Read more less

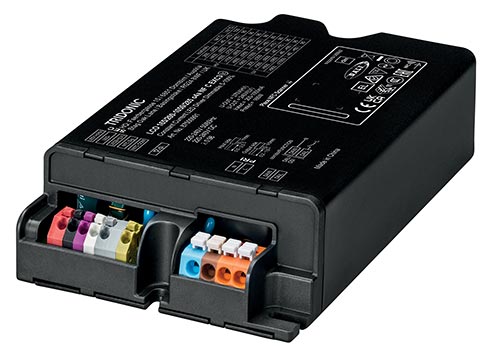

Driver LCO 165W 200–1050mA 285V one4all NFC C EXC3 excite NFC outdoor series Product description Dimmable built-in constant current LED driver Dimming range 5 – 100 % (min. 10 mA) For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer Max. output power 165 W Up to 93 % efficiency Lowest power input on stand-by < 0.16 W Nominal lifetime of 100,000 h and 8 years guarantee Interfaces Near field communication (NFC) one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration via mains) U6Me2 (configuration of chronoSTEP 2 via mains) Terminal blocks: 45° / 0° push terminals Functions Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains) Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2, ready2mains) Dimming through mains voltage (inputDIM) Enhanced constant light output function (eCLO) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Configurable external temperature management (ETM) Intelligent Temperature Guard (ITG) Intelligent Voltage Guard Plus (IVG+) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency In-field programming possible after installation with NFC interface and ready2mains High overvoltage protection: up to 10 kV asymmetric (protection class I and II) Typical applications Road, street and industry

Read more less

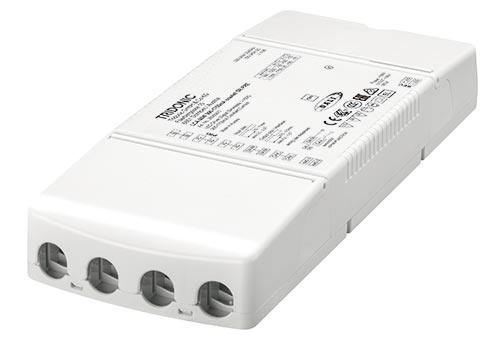

Driver LCA 60W 900–1750mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 60 W Up to 90 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

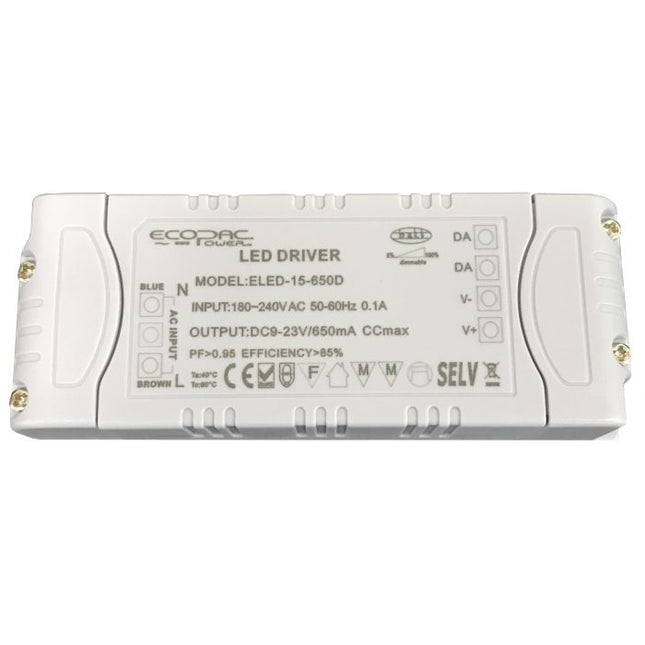

obsolete replaced by the  Alternative  Dali dimmable Constant current design Protections: Short circuit/ Overload/ Over voltage   Other Features: Built-in PFC function (PFC>0.95) Cooling by free air convection Up to 80% efficiency Fully isolated, delivering up to 15W of power Dali control standard IEC62386 Dali control input <2mA, 5-100% logarithmic dimming rangeMore Information Manufacturer Ecopac Power Output Wattage (W) 15 Dimmable (Type) DALI Dimensions 95x 37x 18mm EMC Standards EN61547, EN55024, EN61000-4-2, 3, 4, 6, 8, 11, EN61000-3-2, EN61000-3-3 Input Voltage 100-240VAC Safety Standards EN60598 Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet ELED-15-Dali_Series.pdf

Read more less

The Ecopac Power ECP100-24VF-1 slimline constant voltage LED driver is ideal for concealment where space is restricted, such as hiding behind a strip. Short circuit, over temperature and over loading protection are all standard features.  Ecopac Power LED Drivers are supplied with a 3 year warranty.  Other features: Slim line LED Driver Universal AC input/ Full range 180-264VAC Input Frequency 50/60Hz 24V Constant voltage output 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 100 Output Voltage 12V Dimmable (Type) No DC Output Adjustment N/a Dimensions 320.6x 26.8x 18.2 (LxWxH) mm EMC Standards EN55015, EN61000-3-2; EN61000-3-3; EN61547 Input Voltage 180-264VAC Safety Standards EN61347-1,EN61347-2-13 Working Temperature -20~+45°C PDF Datasheet ECP-100-VF-1.pdf

Read more less

Input Voltage: 180-264VAC Built-in active PFC function (>0.9) Input Frequency: 50-60Hz Output Power: 200W Protections: Short circuit/ Overload/ Over Temp Compact and light-weight plastic case 3 years warrantyMore Information Manufacturer Ecopac Power Output Wattage (W) 200 Output Voltage 24V Dimmable (Type) No Dimensions 195x 67x 31.5 EMC Standards EN55015, EN61000-3-2; EN61000-3-3; EN61547 Input Voltage 180-264VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -20~+45°C PDF Datasheet ECP200-VL Series.pdf

Read more less

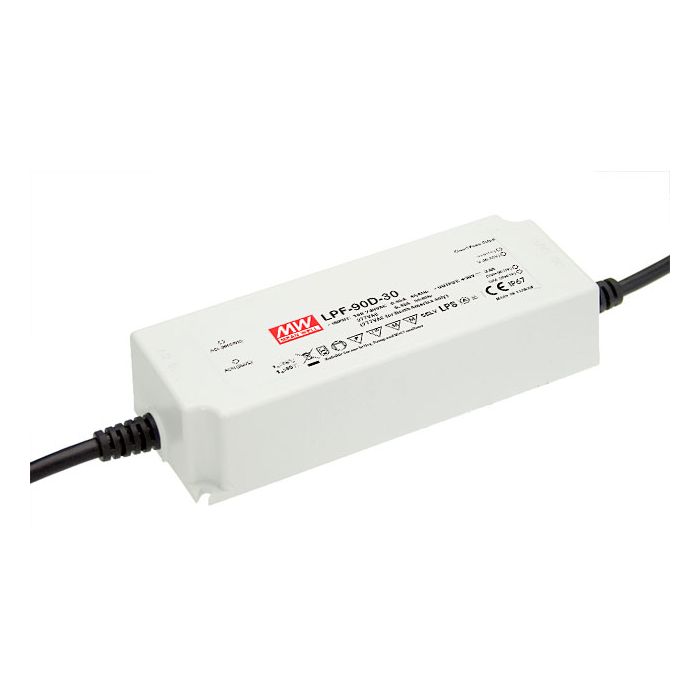

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Fully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC)  / Full RangeBuilt-in active PFC functionFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warrantyMore Information Manufacturer Mean Well Output Wattage (W) 90 Output Voltage 24V DC Output Adjustment N/A Dimensions 161 x 61 x 36 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 Input Voltage 90~305VAC; 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -10~+60°C PDF Datasheet LPF-90D-spec_13.pdf

Read more less

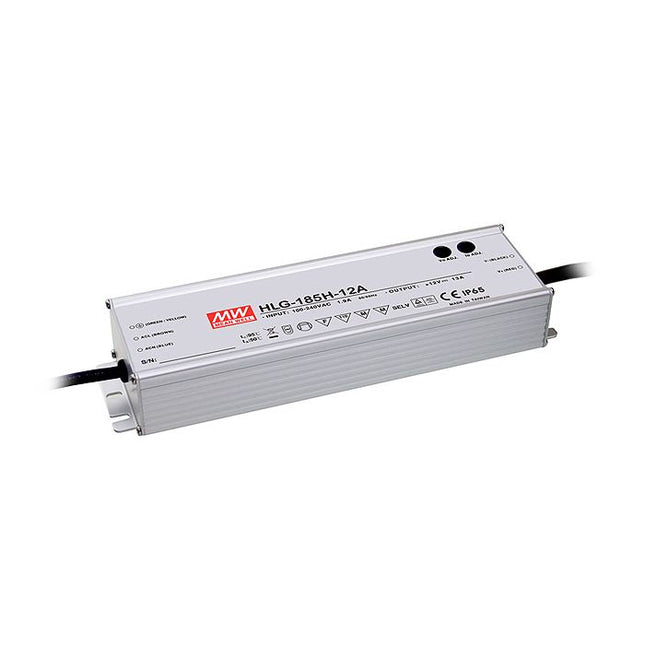

IP65 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 305VAC) / Full rangeHigh efficiency up to 95%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Optional CQC models availableOutput voltage and C.C level can be adjusted through internal potentiometerMore Information Manufacturer Mean Well Output Wattage (W) 185 Output Voltage 24V Dimmable (Type) 1-10VDC, PWM signal, resistance DC Output Adjustment 22 ~ 27V EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~305VAC, 127~431VDC Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1 Output Voltage Options Single Working Temperature -40~+70°C (refer to output derating curve) PDF Datasheet HLG-185H-spec_2.pdf

Read more less

Driver LCA 75W 900–1800mA one4all lp PRE premium series SELV Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 900 – 1,800 mA Max. output power 75 W Up to 91 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

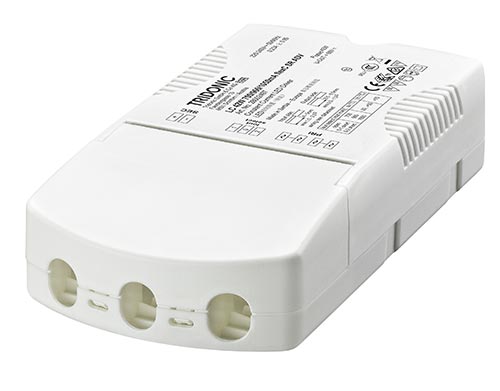

Please select the MA rating you will be running it at and we will include the correct resistor   Product description Independent fixed output LED driver For luminaires of protection class I and protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Adjustable output current between 700, 900 and 1,050 mA Max. output power 42 W Up to 88 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces Input terminals: 0° screw terminals Output terminals: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Burst protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application

Read more less

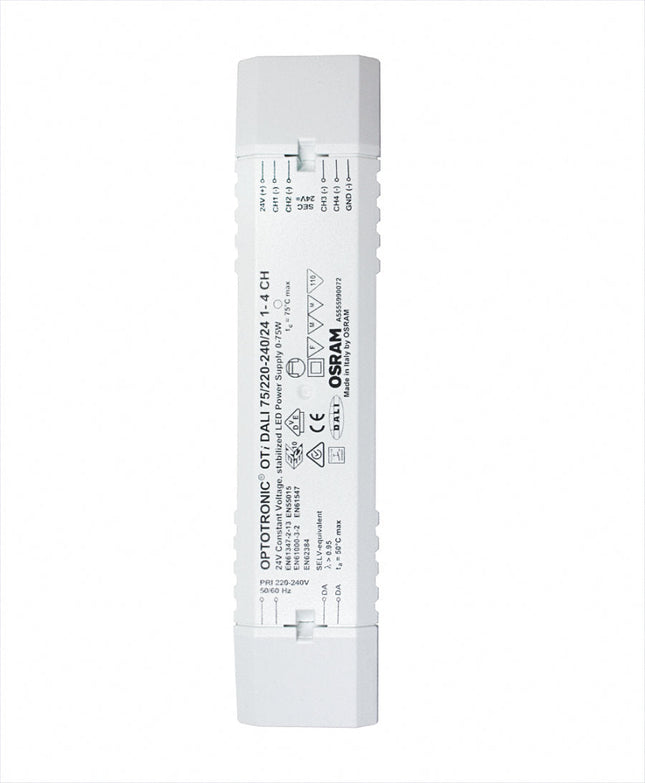

Obsolete,please click on the below for the latest variant   Latest Version  Product family benefits Intelligent power matching thanks to Smart power supply Slim form factor for mounting on the cove or in linear luminaires Minimized flicker thanks to high PWM frequency Suitable for installation in emergency lighting systems according to EN 60598-2-22 Available as Tunable White version (DALI Device Type 8) DALI message detection "LED Module failure" IP rating: IP20 Areas of application Cove lighting, wall washer, corridor, handrail Suitable for use in luminaires of protection class I and II Equipment / Accessories Suitable for 24 V LED modules The OSRAM constant voltage power supplies with DALI, enable you to maximize any design’s potential and enjoy flicker-free light due to a high PWM frequency, dimmable to between 0.1 and 100 % with TouchDIM. Use from 1 to 4 channels and benefit from DALI message detection of LED module failure. The slender form of these drivers makes them ideal for use when you need to install LED lighting in tight spaces or linear luminaires, for example in coves, corridors and handrails, or for wall washing. They are suitable for 24 V LED modules and for use with luminaires of protection classes I and II. Product family features Dimmable via Touch DIM (if supported) LED driver whose output power can be shared arbitrarily among the 2 or 4 channels Dimming range: 0…100 % Line frequency: 0 Hz | 50 Hz | 60 Hz

Read more less

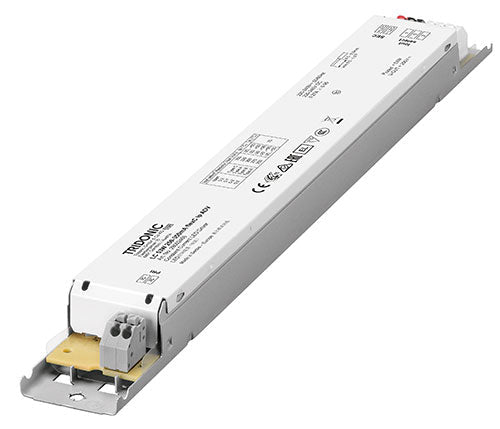

Driver LC 53W 250-350mA flexC lp ADV advanced series non-SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 250 – 350 mA Max. output power 53 W Up to 90.5 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For linear/area lighting in office applications
