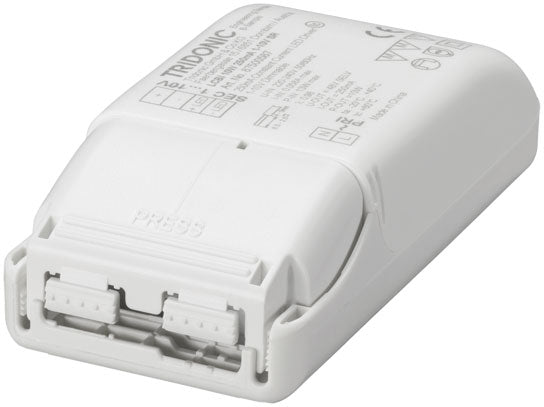

Product description
Dimmable constant current LED driver (SELV)
Independent driver with strain-relief housing
Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
Dimmable via leading edge and trailing edge phase dimmers
Trailing edge is a benefit in terms of noise compared to leading edge
Dimming range 5 to 100 % (depending on dimmer)
For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
Max. output power 7.6 W
Output current 180 mA
Nominal lifetime up to 50,000 h
5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Compact drivers
Data sheet
Product Details
60W Constant current LED Power Supply LCM-60DA series
The LCM-60DA LED driver is a 60W multiple-stage output current LED power supply with built-in DALI interface. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications.
Output current level selectable by DIP Switch180∼295VAC input onlyBuilt-in active PFC functionProtections: Short circuit / Over voltage / Over temperatureCooling by free air convectionFully isolated plastic caseClass II power unit, no FGBuilt-in DALI interface and push dimming functionBuilt-in 12V/50mA auxiliary outputIP20 designTemperature compensation function by external NTCNo load power consumption <1WPower supplies synchronization function up to 10 unitsSuitable for LED lighting applications
Mean Well LED Drivers, Constant Current
Specifications
Attribute
Value
Input Voltage
180 → 295 V ac, 254 → 417 V dc
Output Voltage
2 → 90V
Operation
Constant Current
Output Current
1.05 A, 1.4 A, 500 mA, 600 mA, 700 mA, 900 mA
Maximum Output Power
60.3W
Dimming Operation
DALI
AC or DC Input Voltage
ac, dc
IP Rating
IP20
Voltage Rating
180 → 295 V ac, 254 → 417 V dc
Product description
Ready-for-use resistor to set output current value
Compatible with LED driver featuring I-select 2 interface; not compatible with I-SELECT (generation 1)
Resistor is base insulated
Resistor power 0.25 W
Current tolerance ± 2 % additional to output current tolerance
Compatible with LED driver series PRE and EXC
Show more
Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry/ damp/ wet locations5 year warrantyMore Information
Manufacturer
Mean Well
Output Wattage (W)
65
Output Current
350mA
Dimmable (Type)
1-10VDC, PWM signal, resistance
Output Voltage Range (V)
18~186
Dimensions
189x 61.5x 36.8
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
Input Voltage
180~528VAC, 254~747VDC
Safety Standards
UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP67 approved
Output Voltage Options
Single
Working Temperature
-30~+60°C (Refer to "Derating Curve")
PDF Datasheet
HVGC-65-spec.pdf

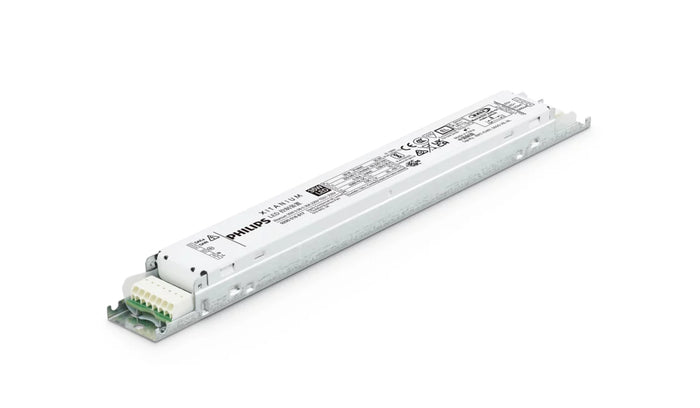

929001471006
Specifications
Operating and Electrical
Output Current (Max)
540 mA
Output Current (Min)
150 mA
Output Voltage (Max)
54 V
Output Voltage (Min)
24 V
Mechanical and Housing
Housing
WH Independent
Housing Dimensions
200 x 75 x 32
Product Data
Full product code
871869961040100
Order product name
Xitanium 20W WH 0.15-0.5A 54V Is G2
EAN/UPC - Product
8718699610401
Order code
929001471006
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
20
Material Nr. (12NC)
929001471006
Net Weight (Piece)
0.140 kg
Leading edge & Trailing Edge Dimmable
Constant Current Design
Protections: Short circuit/ Over Voltage/ Overload/ Over Temperature
Other features:
Power Factor >0.9
Class II
3 years warrantyMore Information
Manufacturer
Eaglerise
Output Wattage (W)
7
Output Current
700mA
Dimmable (Type)
No
Output Voltage Range (V)
11.5~17.5
DC Output Adjustment
No
EMC Standards
EN55015; EN61000-3-2 Class C; EN61000-3-3, EN61547; EN61000-4-2 – Performance Criteria B; EN61000-4-5 – 500V; Performance Criteria C
Input Voltage
220-240VAC
Safety Standards
EN61347-1, EN61347-2-13
Working Temperature
-10~+50°C
EUP150T Series Features:
Single channel constant voltage output
Support Leading edge (TRIAC) and Trailing edge (ELV) Dimmer
Other features:
Dimming range from 40VAC to 240V AC
Dimming effect smooth, no flicker
High efficiency: up to 88%
Over power protection; Over voltage protection; Short circuit protection
Suitable for indoor LED lighting application
Spec
EUP150T-1H12V-0
EUP150T-1H24V-0
Wattage
150
150
Input Voltage
220-240VAC
220-240VAC
Output Current
12.5
6.25
Output Voltage
12V
24V
Output Voltage Options
Single
Single
Dimensions
310 x 60 x 45
310 x 60 x 45
Working Temperature
-20 - +50°C
Safety Standards
CE
Built-in active PFC function
Dali Dimmable
Protections: Short circuit/ Over Current/ Over Loading
Other features:
IP20 Design for Indoor Installations
Dimming function : Built-in Dali interface push dimming
Suitable for intelligent LED lighting
Suitable for dry locations
3 years warrantyMore Information
Manufacturer
Ecopac Power
Output Voltage
24
Dimensions
80x 36x 23
EMC Standards
Compliance to EN55015, EN61000-3-2-3 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11(surge 4KV)
Input Voltage
100-265VAC
Safety Standards
EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+60°C
PDF Datasheet
ELED-10-D UP.pdf
12V DC 0-15W Constant Voltage LED Driver, IP20 rated 15W 12V 1.25A LED Power Supply
This is a 1.25A 12V constant voltage LED driver for loads up to 15W. Ideal for use with the LED strips AST0048 and with all 12V DC Constant Voltage LED applications.
12V DC 15W LED Driver - Technical Specs
Dimensions: 123mm length, 45mm width, 19mm height
Electronic LED converter
Operating Voltage: 220-240V ac 50/60Hz
Output Voltage: 12V DC
Output Wattage: 1-15W
Output current: max. 1.25A
IP rating: IP20 rated LED driver
Temperatures: -15 ~ +45°C
Double insulated.
CE Mark
3 year warranty.
Obsolete please order the below as an alternative and select 700Ma .
https://www.easy-controlgear.com/products/eled-20p-c250-700t-constant-current-led-drivers-10-5-20-3w?_pos=1&_sid=2e417cc1e&_ss=r
Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 700mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year WarrantyMore Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 700mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf
PCB type designFlicker free designProtections: Short circuitOther features:Constant Current mode outputBuilt-in active PFC functionNo load power consumption <0.5W (Blank-Type)Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output3 years warrantyMore Information
Manufacturer
Mean Well
Output Wattage (W)
45
Output Current
500mA
Dimmable (Type)
Yes
Output Voltage Range (V)
54~90
DC Output Adjustment
54-90V
Dimensions
120x 66.5x 25
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV)
Input Voltage
90-295VAC
Safety Standards
UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved
Output Voltage Options
Single
Working Temperature
-20°C-+40°C
PDF Datasheet
IDPC-45-SPEC.pdf
