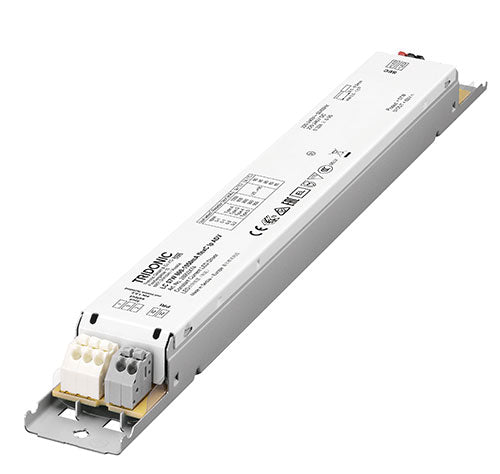

river LC 57W 800-1050mA flexC lp ADV advanced series SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 800 – 1,050 mA Max. output power 57 W Up to 86 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Suitable for emergency escape lighting systems acc. to IEC 50172 Typical applications For linear/area lighting in office applications

Read more less

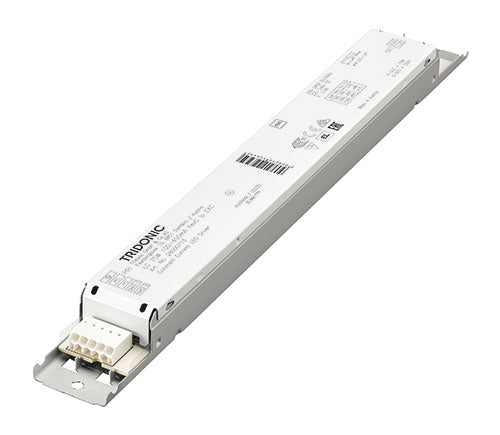

Driver LC 75W 100–400mA flexC lp EXC excite series non-SELV Product description Constant current LED Driver for luminaire installation For luminaires of protection class I and protection class II Adjustable output current between 100 and 400 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 75 W Up to 94 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces ready2mains (configuration via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

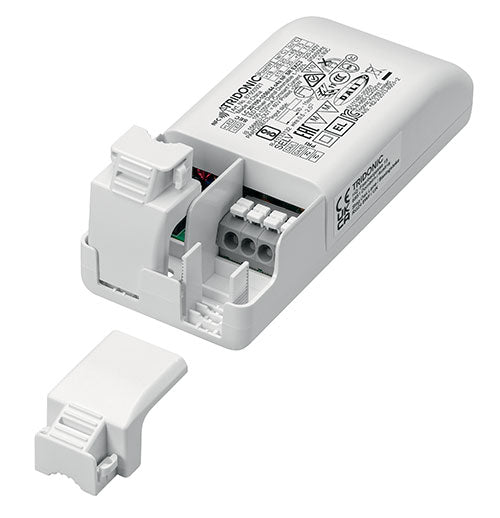

Driver LC 20W 100-1050mA 44V o4a NF SR EXC3 excite series Product description Independent constant current LED driver Dimmable via DALI-2 Dimming range 1 to 100 % (min. 5 mA) Output current adjustable between 100 – 1,050 mA with DALI or NFC Max. output power 20 W Up to 85 % efficiency Power input on stand-by < 0.4 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Toolless mounting of strain relief Interfaces Near field communication (NFC) one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION V2) Functions Adjustable output current in 1-mA-steps (NFC, DALI-2) Constant light output function (CLO) Protective features (overtemperature, short-circuit, overload, no-load) Surge protection voltage 1 kV (L – N) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Flexible configuration via companionSUITE (NFC, DALI-2) Application-oriented operating window for maximum compatibility New strain relief concept – fast mounting and pre-assembled connection of the LED load possible Typical applications For applications in downlight and decorative luminaires

Read more less

LC1x30-E-DA   30 W DALI dimmable LED driver 350 mA / 500 mA / 700 mA multiple currents output Lifetime up to (h): 100000 Dimming range: 1% – 100% Product number: 5 502 004 More information: DALI, PanelReady Datasheet

Read more less

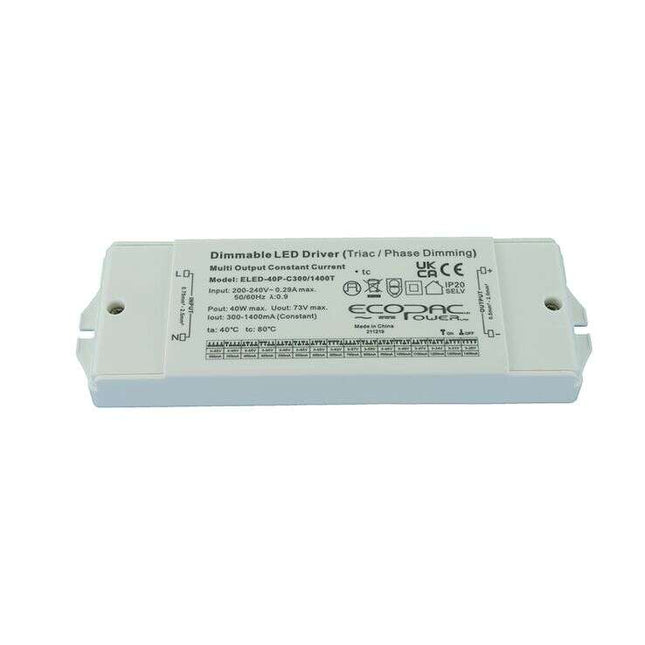

ELED-40P-C300/1400T Series Features: Features: • Constant Current mode output with multiple levels selectable by dip switch• Dimming function: Triac/phase cut dimming• Work with leading or trailing edge Triac dimmer• (ON key: leading edge; 1 key: trailing edge)• AC input: 200-240VAC• Built-in active PFC function• Efficiency up to 80%• IP20 design for indoor installation• Full protection plastic housing easy installation• Protections: Short circuit/ Over load• Cooling by free air convection• Suitable for LED lighting and moving sign applications• Strong compatibility, flicker-free dimming https://www.ecopacpower.co.uk/assets/pdf/ELED-40P-C300-1400T.pdf

Read more less

EM powerLED PRO EZ-3, 1 – 2 W Combined emergency lighting LED Driver 1 – 4 W Screw-fix Clip-fix Screw-fix Clip-fix Product description Emergency lighting LED Driver with DALI interface and automatic test function For self-contained emergency lighting SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm cross-section) 5 years guarantee Properties Mains and emergency operation DALI interface for controlled testing and monitoring DALI switchable in mains operation (on/off); the switched phase SL must be switched on Constant current mode With either screw or clip fastening (clip-fix) 1, 2 or 3 h rated duration Selectable operating time (jumper) Output power limitation Two-colour status display LED Automatic restart after LED replacement Electronic multi-level charge system SELV classified (outputs powerLED, battery, status LED, test switch) Polarity reversal protection for battery Deep discharge protection Very low energy consumption from the battery after activation of the deep discharge protection Short-circuit-proof battery connection Addressing function, patented (“EZ easy addressing”) Emergency lighting LEDs available Tests: Status of the battery Status of the LED Charge condition Function test Duration test Batteries High-temperature cells 2 Ah NiMH batteries Cs cells 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

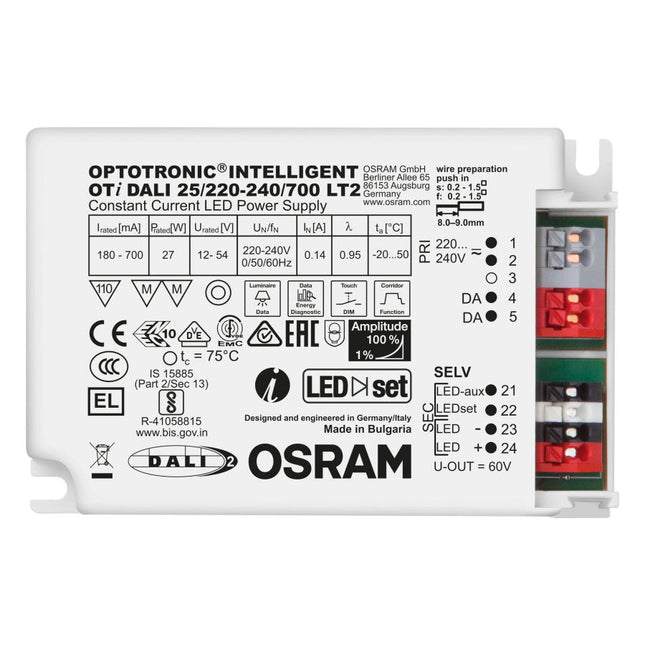

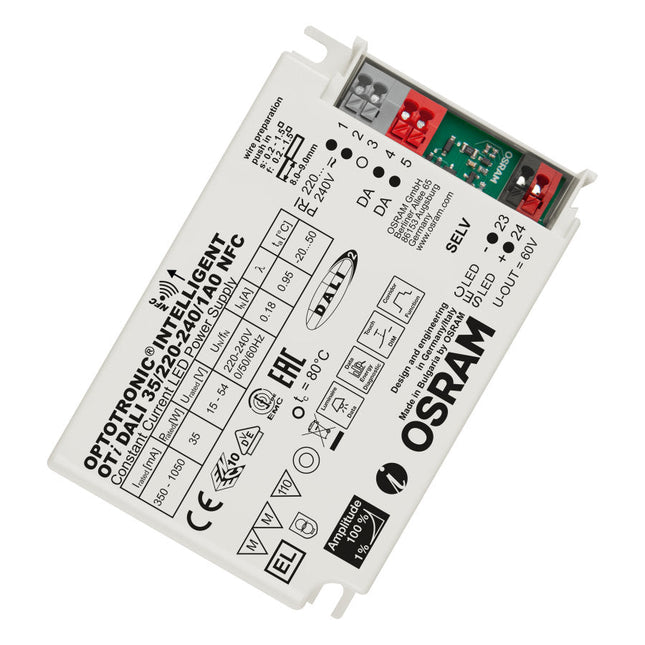

Nominal input voltage 220…240 V Mains frequency 0/50/60 Hz Input voltage AC 198…264 V Input voltage DC 176…276 V Total harmonic distortion < 20 % Power factor λ > 0.95 ECG efficiency 88 % Device power loss 4.5 W Power loss in stand-by mode <0.1 W Inrush current < 20 A Max. ECG no. on circuit breaker 10 A (B) 50 Max. ECG no. on circuit breaker 16 A (B) 80 Max. ECG no. on circuit breaker 25 A (B) - Surge capability (L/N-Ground) 2 kV Surge capability (L-N) 1 kV Nominal output voltage 12…54 V U-OUT (working voltage) 60 V Nominal output current 180…700 mA Output current LEDset open 90 mA Output current LEDset shorted 500 mA Default output current 500 mA Output current tolerance ±3 % Output ripple current (100 Hz) < 1 % Output PSTLM ≤1 Output SVM ≤0.4 Nominal output power 27 W Galvanic isolation SELV Dimensions & weight Mounting hole spacing, length 94.0 mm Mounting hole spacing, width 58.0 mm Product weight 149.00 g Cable cross-section, input side 0.2…1.5 mm² Cable cross-section, output side 0.2…1.5 mm² Wire preparation length, input side 8.0…9.0 mm Wire preparation length, output side 8.0…9.0 mm Height 29.5 mm Length 103.0 mm Width 67.0 mm Colors & materials Casing material Plastic Temperatures & operating conditions Ambient temperature range -20…+50 °C Maximum temperature at tc test point 75 °C Max.housing temperature in case of fault 110 °C Temperature range at storage -25…85 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 / 100000 h Capabilities Dimmable Yes Dimming interface DALI / Touch DIM / Touch DIM Sensor Dimming range 1…100 % Dimming method Amplitude Modulation Constant lumen function Programmable Overheating protection Automatic reversible Overload protection Automatic reversible Short-circuit protection Automatic reversible No-load proof Yes Max. cable length to lamp/LED module 2.0 m Suitable for fixtures with prot. class I / II Type of connection, output side Push terminal Number of channels 1 Programming interface DALI, LEDset DALI-2 Diagnostic Data Yes DALI-2 Energy Data Yes Programming Tuner4TRONIC Field App No Programming device DALI / LEDset Programmable features Lamp Operating Time Yes Driver Guard No DALI Settings Yes Emergency Mode Yes DALI-2 Luminaire Data Yes Configuration Lock No Soft Switch Off Yes Dim to Dark No TouchDIM + Sensor Yes Corridor Functionality Yes OEM Key Yes Certificates & standards Approval marks – approval ENEC 10 / VDE / EMC / EL / CE / DALI-2 Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1 Protection class II Type of protection

Read more less

EM powerLED PRO DIM SR 45 W Combined emergency lighting LED driver Note: LED driver supplied with duration dip switch (2-way) in 3 hours position. Duration dip switch and I-SELECT 2 PLUG must be set before battery and mains connection. Product description Independent dimmable LED driver Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 20 – 50 V SELV for output voltage < 60 V DC Compact plastic casing with strain relief Properties Output power 6 – 45 W Constant current LED operation 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA Integrated emergency lighting unit 1, 2 or 3 h rated duration Operating time selectable with dip switch (2-way) Automatic shutdown of output if the forward voltage of the LED is out of range Two-colour status display LED Electronic multi-level charge system Pulse current charging for NiMH batteries Polarity reversal protection for battery Power-up fading at AC Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Deep discharge protection Short-circuit-proof battery connection 5 years guarantee Interfaces one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION) Terminal blocks: 45° push terminals Batteries High-temperature cells NiCd or NiMH batteries D, Cs, LA or LAL cells Battery box for independent use 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

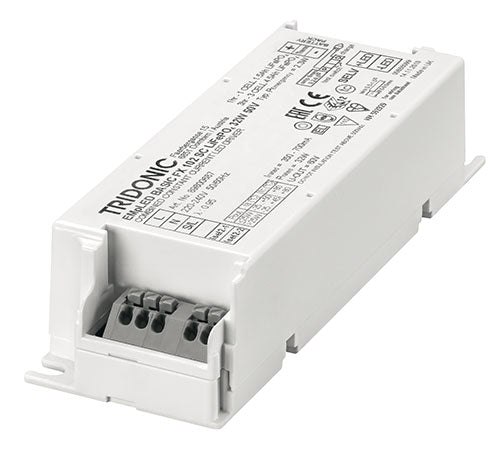

Combined emergency LED driver for manual testing For self-contained emergency lighting Can be either used build-in or independent with clip-on strain-relief (see accessory) Max. output power 32 W Nominal lifetime up to 100,000 h 5 years guarantee Functions Adjustable output current between 350 and 700 mA via I-SELECT 2 plugs Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Suitable for emergency escape lighting systems acc. to EN 50172 1 or 3 h rated duration depending on connected battery Constant power output in emergency mode Battery management Intelligent charge system Deep discharge protection Temperature protection Polarity reversal protection for battery provided by 3-pole connector Batteries LiFePO4 batteries with Tridonic LiFeGuard Temperature-protected Overcharge-/Overdischarge protection Ensures safety in use Up to 8 year design life 3 years guarantee For battery compatibility refer to datasheet, battery selection

Read more less

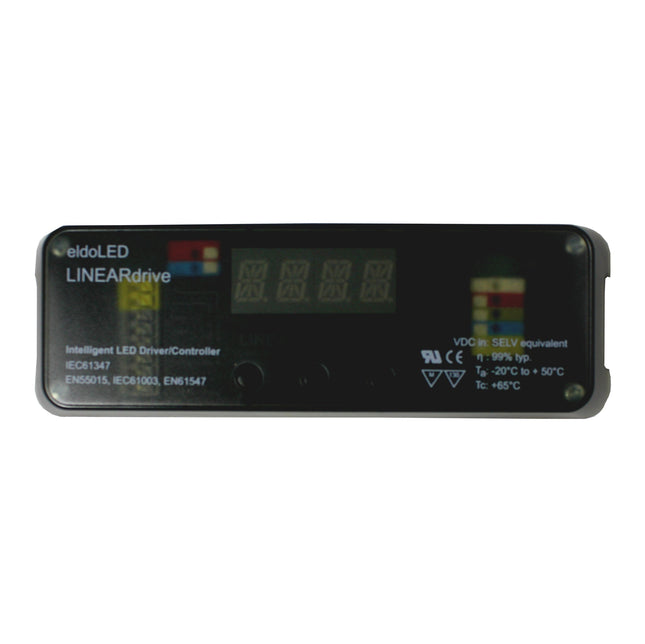

LINEARdrive 180D is a constant voltage LED driver. It features four LED outputs that can be controlled individually via DMX. You can configure the driver over its intuitive, 3-button user interface with display: it lets you configure the number of channels, DMX settings for networked mode and show, colour and dim values for standalone operation. The driver features wire restraints which make it perfectly suited for independent installations. Features HydraDrive: provides the smoothest colour fades and dimming to dark User interface for driver configuration Benefits Dynamic response can be tuned to fit any content - from exceptionally smooth fades in architecture to fast-paced video in entertainment Configurable on-the-fly Input Characteristics Nominal input voltage DC: 12 - 28V Maximum input current: 6A, irrespective of PSU voltage Output Characteristics LED output load: RGBW @ 12V: 1.5A RGB @ 12V: 2A RGBW @ 24V: 1.5A RGB @ 24V: 2A Maximum LED output power: 180W Number of LED outputs: 4 (UL Class 2) LED output voltage: 12 - 24V Downloads Datasheet LIN180D3Specification submittal sheetWiring diagramQuick Start Guide

Read more less

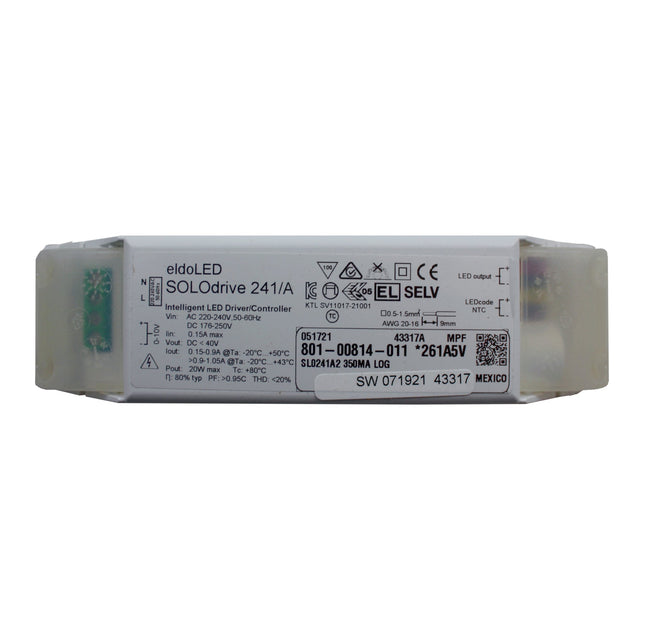

  This SOLOdrive product will be configured to your required current at any interval between 150mA and 1050mA.  Please state your required current in the box above. If you do not require this extra service & wish to purchase this product at the pre-configured current of 350mA   SOLOdrive 241/A2 delivers 20W and is 0-10V compatible. As all SOLOdrives, the 241/A2 smoothly dims all the way down to dark. The 20W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50mm diameter hole in the ceiling into a plenum with a 110mm height between functional and decorative ceiling. Features Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls NTC interface for robust thermal management Benefits Increase performance and capability of any LED fixture Reduce inventory and decrease lead times with configurable drivers Short lead times, designed to meet the most aggressive timelines Trusted brand with proven track record of performance and reliability Input Characteristics Nominal input voltage range AC: 220 - 240V (ENEC) Absolute input voltage range AC: 198 - 264V Nominal input voltage range DC: 176 - 250V Maximum input current: 0.15A @ 230V / 50Hz Input frequency range: 50 - 60Hz Output Characteristics Maximum LED output power: 20W Number of LED outputs: 1 Programmable LED output current range: 150 - 1050mA LED output type: Programmable in 1mA increments within specified current rangeLED output current tolerance: +/- 5% at programmed LED output current LED output voltage range: 2 - 40V Downloads Datasheet SL0241A2Specification submittal sheet

Read more less

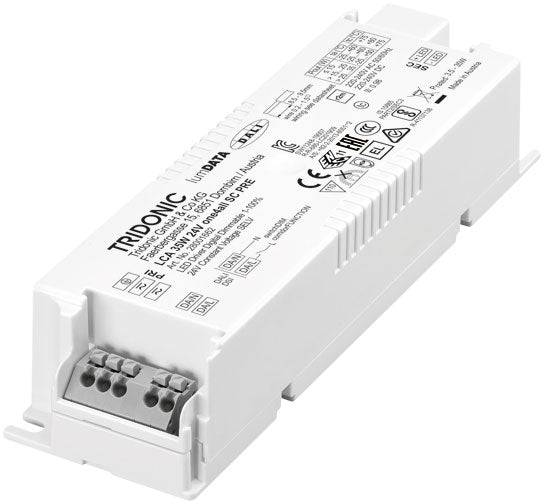

Tridonic LCA 35W 24V one4all SC PRE SP 28001920
