28001250 Driver LCA 75W 250–550mA one4all lp PRE
Product description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Dimmable built-in constant current LED driver
Dimming range 1 to 100 %
For luminaires of protection class I and protection class II
Output current adjustable between 250 – 550 mA
Max. output power 75 W
Up to 92 % efficiency
Power input on stand-by < 0.15 W
Nominal lifetime up to 100,000 h
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Housing properties
Low profile metal casing with white cover
Type of protection IP20
Interfaces
one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration and dimming via mains)
Terminal blocks: 0° push terminals
Functions
Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Constant light output function (CLO)
Power-up fading at AC
Configurable via ready2mains
Switch off the driver with fade2zero
Service monitor to log certain events
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
Flexible configuration via companionSUITE
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency
Flexible configuration via DALI, ready2mains and I-SELECT 2
Reliability proven by lifetime up to 100,000 h and 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Typical applications
For linear/area lighting in office applications

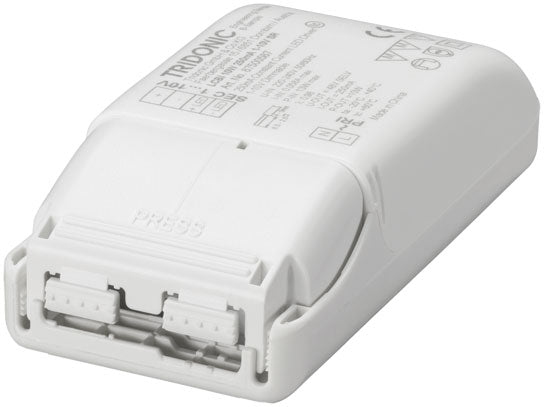

87500274 LCBI 10W 350mA PHASE-CUT/1-10V SR
Product description
Independent dimmable LED driver
Constant current LED driver
Dimmable via leading edge and trailing edge phase dimmers
Dimmable via 1 ... 10 V
Output dimmed analogue (current amplitude)
Dimming range typ. 10 to 100 % (depending on dimmer)
For luminaires of protection class I and protection class II
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Temperature protection as per EN 61347-2-13 C5e
SELV
Output current 350 mA
Output power 10 W
Nominal lifetime up to 50,000 h
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
Manufacturer:
MEAN WELL
Product Category:
LED Power Supplies
Delivery Restrictions:
Product available only to OEM/EMS and design business customers. Product is not shipped to consumers in the EU or the UK
RoHS:
Operation Mode:
Constant Current (CC)
Output Current-Channel 1:
350 mA
Output Voltage-Channel 1:
9 VDC to 36 VDC
Output Power:
12.6 W
Input Voltage:
90 VAC to 264 VAC, 127 VDC to 370 VDC
Dimming:
Without Dimming
Number of Outputs:
1 Output
Mounting Style:
Desktop
Length:
77 mm (3.031 in)
Width:
40 mm (1.575 in)
Height:
29 mm (1.142 in)
Industry:
Industrial
Series:
APC-12
IP Rating:
IP42
Brand:
MEAN WELL
Open Frame/Enclosed:
Enclosed
Packaging:
Bulk
Product Type:
LED Power Supplies
120
Subcategory:
Power Supplies
Unit Weight:
362.880 g
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0
APC-12-350 Datasheet

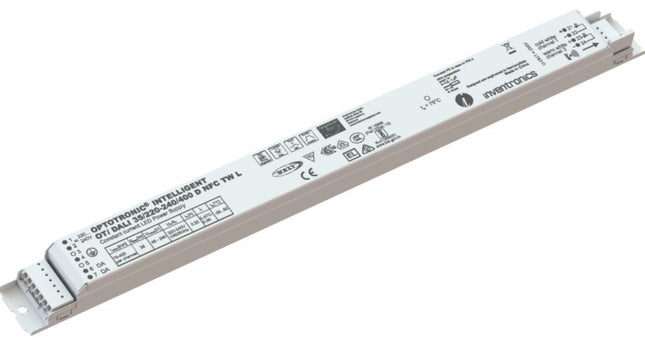

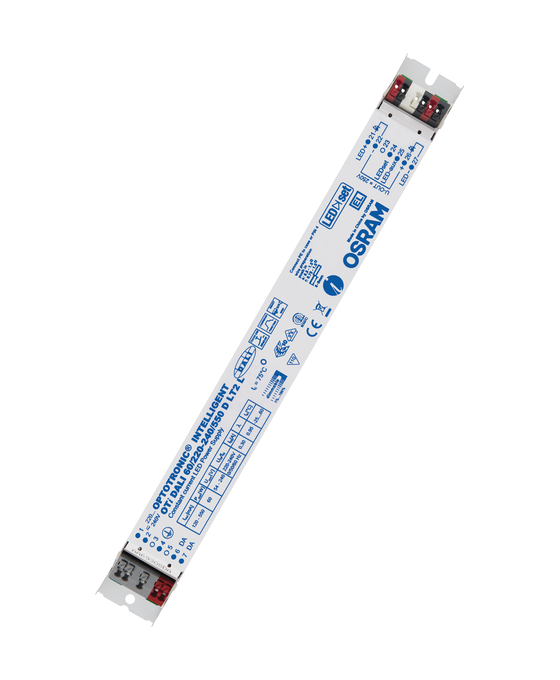

Product family features
Line frequency: 0 Hz | 50 Hz | 60 Hz
Versatile DALI window driver up to 75 W due to flexible output characteristic
Supply voltage: 220…240 V
Usable as DT6 (2-channel) or DT8 (Tunable White) driver*
Available with output current range: up to 700 mA
Constant Lumen Output (CLO)
Integrated customizable thermal management (Driver Guard)
Non-isolated drivers
Product family benefits
Control of standard white or Tunable White light acc. DALI device type 8 (DT8)*
TouchDIM Tunable White integrated for use without additional LMS
Fully programmable via T4T software (NFC, DALI Interface)
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
High-quality dimming of 1…100 % (amplitude and/or PWM selectable by software)
High quality of light thanks to <1% output ripple current
Very high efficiency
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Versatile scope of application due to DALI Technology:
Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Luminaire information for easy maintenance
Areas of application
For Tunable White as well as for 2-channel use (e.g. direct/indirect lighting)
Linear lighting for office, education, industry, storage areas and retail
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for installation in emergency lighting systems according to EN 60598-2-22
Suitable for luminaires of protection class I
Perfect system match with PrevaLED Linear Tunable White
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Product Datasheet
Product features
Compact casing shape
Functions
Selectable current output by dip-switch
Electrical features
Mains voltage: 220–240 V ±10%
Mains frequency: 50–60 Hz
Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm²
Power factor at full load: > 0.95
Open circuit voltage (Umax.): 60 V
Secondary side switching of LED modules is not allowed
Safety features
Protection against transient main peaks up to 1 kV (between L and N)
Electronic short-circuit protection
Overload protection
Degree of protection: IP20
Protection class II
SELV
Dimensions
Length: 97 mm • Width: 43 mm • Height: 30 mm
Product guarantee
5 years for operation at recommended operation temperature

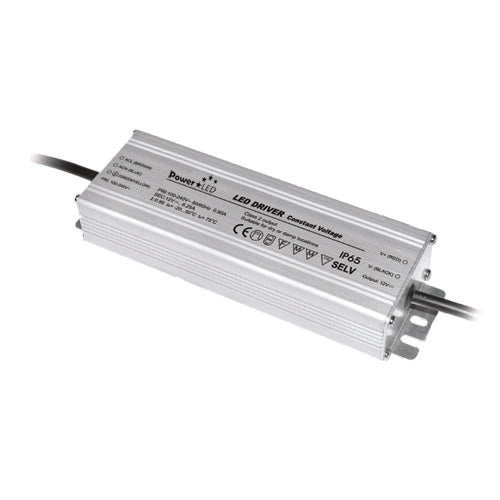

Constant Voltage
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage
Other features:
Universal AC input / Full Range
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
Low cost, High reliability
2 years warranty
Constant Voltage
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage
Other features:
Universal AC input / Full Range
Class 2 power unit
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
Pass LPS
100% full load burn-in test
Low cost, High reliability
2 years warranty
Constant Voltage
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage
Other features:
Universal AC input / Full Range
Class 2 power unit
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
Pass LPS
100% full load burn-in test
Low cost, High reliability
2 years warranty

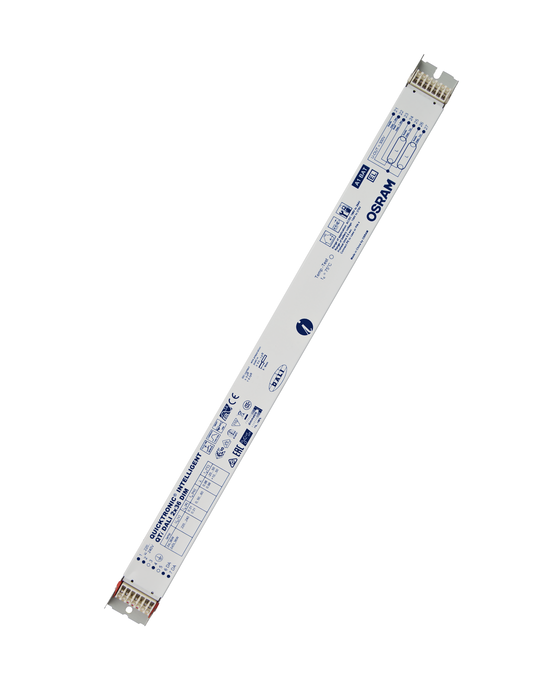

Product features− Corridor function for direct connection of ECG to common motion sensor− Corridor function with pre-programmed light program− Touch DIM function for free parameterization of light value and turn on time− Fit for SMART GRID for feedback of consumed mains power and lamp operating hours− Fit for emergency function for automatic detection of emergency lighting by ECG− Very low standby power consumption: < 0.5 W− Lifetime: > 100,000 h (for T = 65 °C at Tc)− Very high number of switching cycles: up to 300,000− Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)− POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifeti

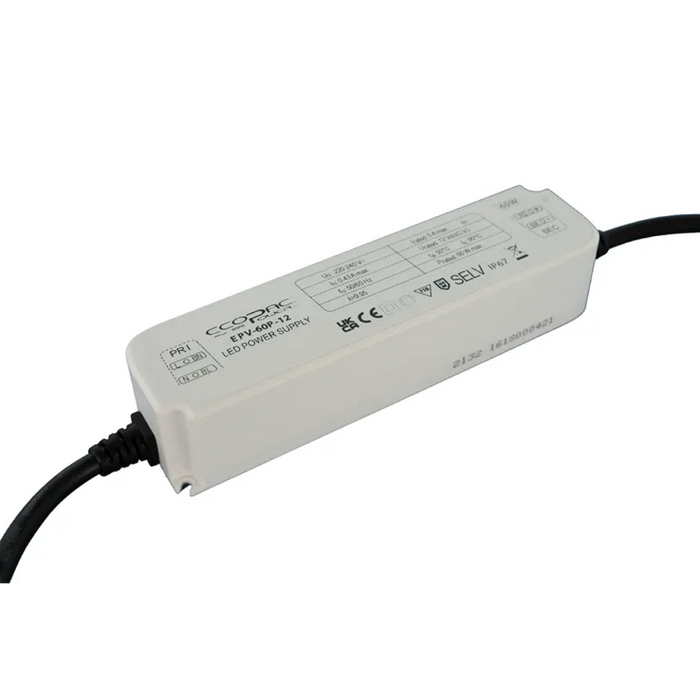

Ecopac EPV-60P-12 Non-dim Constant Voltage LED Drivers 60W
The EPV-60P-XX series is a 60W, constant-Voltage IP67 LED driver that operates from 176-264Vac input with excellent power factor and THD feature.
Feature:
High efficiency up to 89%
Built-in active PFC function
All-Around Protection: OLP,SCP,OTP
Compact plastic Case, Free Air Convection
Waterproof(IP67) and UL Dry/Damp/Wet Location
Input Surge Protection:2kV line-line
High Reliability & Long Lifetime & 5 Years Warranty
Dimmable constant current LED driver (SELV)
Independent LED driver with cable clamps
Dimmable via leading edge and trailing edge phase dimmers
Dimming range 5 to 100 % (depending on dimmer)
For luminaires of protection class I and protection class II
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Temperature protection as per EN 61347-2-13 C5e
Selectable output current between 180, 250 and 350 mA
Max. output power 15 W
Up to 81 % efficiency
Nominal lifetime up to 50,000 h
