70-250w SON - 35-250w MH Ignitor Timed - Tridonic - 87500086

Read more less

1 x28-33w 3hr 3Cell TC-DD Low Output Combo HF Ballast - Tridonic - 89899943 / 89899943 Tridonic 89899980 PC1X28-33LOEDD Emergency Combo for CFL   Combination electronic ballast and emergency lighting unit. For use with TC-DD compact fluorescent lamps. 3 hour rated duration, short circuit proof battery connection. NiCd batteries, separate battery pack with high temperature cells.    Volts: 240 v Length: 123 mm Width: 31 mm Diameter: 31 mm Bulb/Lamp Type: Ballast Height: 79 mm Technology: Compact Fluorescent

Read more less

1x26/32-5 TCT Combo HF Ballast - Tridonic - 89899929

Read more less

Tridonic Combined Electronic ballast to run 1 x 38 - 3 Hour 4 Cell  Compact HO DD lamps - PC 1 x 38-34 HO DD Co

Read more less

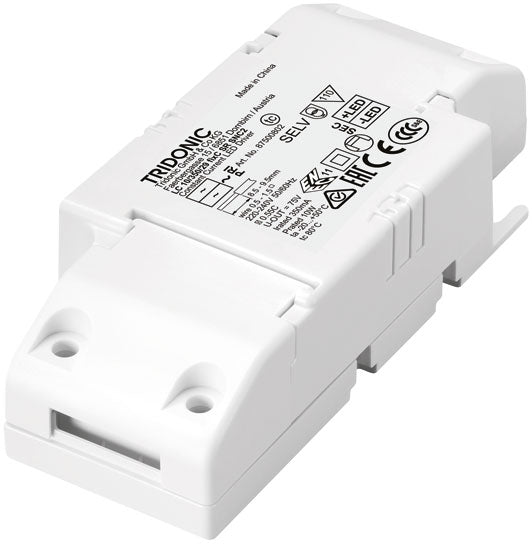

Product description Independent driver with strain-relief housing Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) Temperature protection as per EN 61347-2-13 C5e Output current 350 mA Max. output power 10 W BIS approval mark for art. no.: 87500802, 87500804. Nominal lifetime up to 50,000 h Replacement  for the 87500240 and 87500581

Read more less

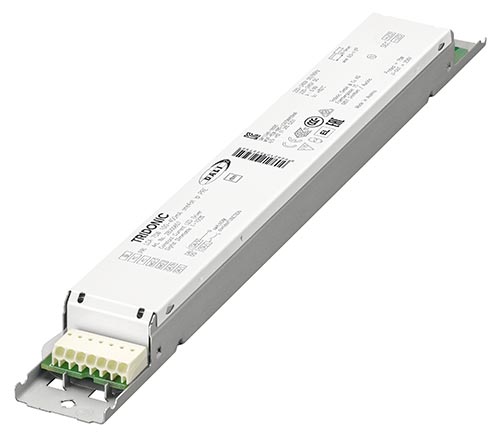

Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Dimmable built-in constant current LED Driver Dimming range 1 to 100 % For luminaires of protection class I and protection class II Output current adjustable between 350 – 1,050 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 50 W Up to 91 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

Tridonic PC136T8PRO Electronic HF Ballast to run 1x36w T8 Tubes - PC 1/36 T8 PRO Tridonic PC1X36T8PRO Article No. 22185214.(replaces 22176108)Digital ballast not dimmable 220-240v 50/60hz T8 1x36Watt. Weight :  144gkg Watts :  1X36 Volts :  240 Manufacturer :  Tridonic Technology :  Digital Beam angle :  N/A Length :  230 Item bin :  E086 Diameter :  30 Item size :  230 x 30 x 21mm Weee logo :  N Fix centres :  220 Colour temp :  N/A Manufacturer code :  22185214 EAN Number :  9006210392738 Download pdf :  DS_PC_T8_PRO_lp_sl_18-58W_en

Read more less

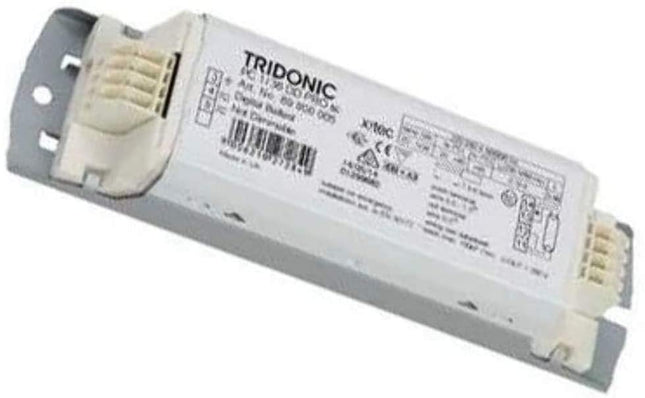

Obsolete, for all alternative please click below   https://www.easy-controlgear.com/products/ledvance-osram-qtpfc155-os-1x-55w-pll-fc-t5-quicktronic-ballast?_pos=1&_sid=aa9661c9e&_ss=r   The Tridonic PC 1/55 DD PRO is a non-dimmable high frequency ballast to run: 1 x 55 Watt 2D/PLQ lamp   Subject to change without notice. www.tridonic.com 1 Data sheet 03/16-834-8 FL ballasts Electronic fixed output EL Product description • CELMA Energy Efficiency Index • Nominal life-time up to 50,000 h (at max. ta with a failure rate max. 0.2 % per 1,000 h) • Large temperature range (for values see table) • Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) • Constant luminous flux irrespective of fluctuations in mains voltage • For luminaires of protection class I and protection class II • Automatic start after replacement of defective lamps • Safety shutdown of defective lamps and at end of lamp life • Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring • For emergency lighting systems as per EN 50172 • For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711 • Temperature protection as per EN 61347-2-3 C5e Technical data AC voltage range 198 – 264 V DC voltage range 176 – 280 V (Lamp start ≥ 198 V DC) Overvoltage protection 320 V AC, 1 h Defined warm start ≤1.5 s Operating frequency ≥40 kHz Type of protection IP20 È Standards, page 2 Wiring diagrams and installation examples, page 4 PC DD PRO sc, 28 – 55 W TC PRO compact TC-DD Ordering data Type Article number Packaging carton Packaging pallet Weight per pc. For luminaires with 1 lamp PC 1/28 DD PRO sc 89800004 25 pc(s). 1,250 pc(s). 0.18 kg PC 1/38 DD PRO sc 89800005 25 pc(s). 1,250 pc(s). 0.18 kg PC 1/55 DD PRO sc 89800006 25 pc(s). 1,250 pc(s). 0.18 kg Specific technical data Lamp wattage Lamp type Type Article number Dimensions L x W x H Hole spacing D Lamp power Circuit power EEI Current at 50 Hz λ at 50 Hz tc point max. Ambient temperature ta 220 V 240 V 220 V 240 V For luminaires with 1 lamp 1 x 28 W TC-DD PC 1/28 DD PRO sc 89800004 150 x 40 x 28 mm 139 mm 25.4 W 28.7 W A3 0.14 A 0.12 A 0.95 0.95 85 °C -25 ... 60 °C 1 x 38 W TC-DD PC 1/38 DD PRO sc 89800005 150 x 40 x 28 mm 139 mm 34.6 W 39.7 W A3 0.19 A 0.17 A 0.96 0.96 85 °C -25 ... 60 °C 1 x 55 W PHASED OUT TC-DD PC 1/55 DD PRO sc 89800006 150 x 40 x 28 mm 139 mm 53.0 W 60.0 W A2 0.28 A 0.24 A 0.98 0.98 80 °C -25 ... 60 °C Subject to change without notice. www.tridonic.com 2 Data sheet 03/16-834-8 FL ballasts Electronic fixed output Mains currents in DC operation Type lamp type wattage mains current at Un = 220 VDC mains current at Un = 240 VDC PC 1/28 DD PRO sc TC-DD 1x28W 0.13 A 0.12 A PC 1/38 DD PRO sc TC-DD 1x38W 0.18 A 0.17 A PC 1/55 DD PRO sc TC-DD 1x58W 0.27 A 0.25 A Harmonic distortion in the mains supply Type lamp type wattage THD at 230 V / 50Hz PC 1/28 DD PRO sc TC-DD 1x28W < 15% PC 1/38 DD PRO sc TC-DD 1x38W < 10% PC 1/55 DD PRO sc TC-DD 1x58W < 10% Working voltage Type lamp type wattage Uout PC 1/28 DD PRO sc TC-DD 1x28W 250 V PC 1/38 DD PRO sc TC-DD 1x38W 250 V PC 1/55 DD PRO sc TC-DD 1x58W 250 V Ballast lumen factor (EN 60929 8.1) Type lamp type wattage AC/DC-BLF at U = 198–254 V, 25 °C PC 1/28 DD PRO sc TC-DD 1x28W 1.00 PC 1/38 DD PRO sc TC-DD 1x38W 1.00 PC 1/55 DD PRO sc TC-DD 1x58W 1.00 Standards: EN 55015 EN 61347-2-4 EN 61347-2-3 EN 60929 EN 61000-3-2 EN 61547 in accordance with EN 50172 Lamp starting characteristics Warm start Starting time 1.5 secs with AC and DC operation Cathode heating will be reduced after preheat time AC operation Mains voltage: 220–240 V 50/60 Hz 198–264 V 50/60 Hz including safety tolerance (±10 %) 202–254 V 50/60 Hz including performance tolerance (+6 % /-8 %) DC operation 220–240 V 0 Hz 198–280 V 0 Hz certain lamp start 176–280 V 0 Hz operating range Light output level in DC operation: 100 % Emergency lighting Use in emergency lighting installations according to EN 50172 or for emergency luminaires according to EN 61347-2-3 appendix J. Instant start after mains interruption < 0.5 s EBLF ≥ 0.5 Intelligent Voltage Guard Intelligent Voltage Guard is the name of the new electronic monitor from Tridonic. This innovative feature of the PC PRO family of control gear from Tridonic immediately shows if the mains voltage rises above or falls below certain thresholds. Measures can then be taken quickly to prevent damage to the control gear. • If the mains voltage rises above approx. 305 V (voltage depends on the ballast type), the lamp starts flashing on and off. • This signal “demands” disconnection of the power supply to the lighting system. • If the mains voltage falls below 150 V the control gear automatically disconnects the lamp circuit to protect the control gear from being irreparably damaged. Smart Heating Innovative heating circuit. Reduced filament heating after lamp has struck. All data are typical values PHASED OUT Subject to change without notice. www.tridonic.com 3 Data sheet 03/16-834-8 FL ballasts Electronic fixed output Wiring advice The lead length is dependant on the capacitance of the cable. For safety reasons, the PC DD PRO sc must only be earthed in the case of a safety class 1 luminaire. Earthing is not required for the device to operate. Connection to earth reduces radio interference. With standard solid wire 0.5/0.75mm2 the capacitance of the lead is approx. 80 pF/m. This value is influenced by the way the wiring is made. In borderline cases the capacitance must be measured inside the luminaire. Keep lamp wires short. Lamp connection with twin ballast should be made with symmetrical wiring. Hot leads and cold leads should be separated as much as possible. Ambient Temperature -25 °C to +60 °C The nominal ta and tc point are related to the ballast life duration. The relation of tc to ta temperature depends also on the luminaire design. If the measured tc temperature is approx. 5 K below tc max., ta temperature should be checked and eventually critical components (e.g. ELCAP) measured. Detailed information on request. PC DD PRO sc is designed for an average life-time of 50,000 hours under reference conditions and with a failure probability of less than 10 %. This corresponds to an average failure rate of 0.2 % for every 1,000 hours of operation. Energy class CELMA EEI = A2 / A31) PC DD PRO sc ignition technology (smart heating) optimises lamp start and ensures no energy is wasted. After the lamp has struck the filament heating is reduced automatically to a defined minimum value. This reduction in filament heating, saves energy, yet maintains the proper operating conditions for the lamp. The lamp is always operated within specification. 1) according to the EU directives on ecodesign requirements (EC) No. 245/2009 and (EC) No. 347/2010 PC PRO with xitec processor Is the very latest in lighting management design technology. The lamp friendly warm start is delivering maximum TC-DD lamp life and enables high switching frequency applications. Smallest power loss and new freedom in the lamp design thanks to convincing thermal management. 23 48 tc 17 PC 1/xx DD PRO sc To avoid the damage of the control gear, the wiring must be protected against short circuits to earth (sharp edged metal parts, metal cable clips, louver, etc.) Maximum loading of automatic circuit breakers Automatic circuit C10 C13 C16 C20 B10 B13 B16 B20 Installation Ø 1.5mm2 1.5mm2 1.5mm2 2.5mm2 1.5mm2 1.5mm2 1.5mm2 2.5mm2 PC 1/28 DD PRO sc 32 46 66 80 16 23 33 40 PC 1/38 DD PRO sc 20 30 40 44 10 15 20 22 PC 1/58 DD PRO sc 14 20 26 30 7 10 13 15 Ballast Terminal Maximum capacitance allowed Typ Cold Hot Cold Hot PC 1/xx DD PRO sc 11, 12 13, 14 200 pF 100 pF Expected life-time Type Lamp type Lamp power ta 40 °C 50 °C 55 °C 60 °C PC 1/28 DD PRO sc TC-DD 1x28W tc 65 °C 75 °C 80 °C 85 °C Life-time > 100,000 h 100,000 h 70,000 h 50,000 h PC 1/38 DD PRO sc TC-DD 1x38W tc 65 °C 75 °C 80 °C 85 °C Life-time > 100,000 h 100,000 h 70,000 h 50,000 h PC 1/55 DD PRO sc TC-DD 1x55W tc 60 °C 70 °C 75 °C 80 °C Life-time > 100,000 h 100,000 h 70,000 h 50,000 h x = not permitted Humidity: 5 % up to max. 85 %, not condensed (max. 56 days/year at 85 %) Storage temperature: -40 °C up to max. +80 °C The devices have to be within the specified temperature range (ta) before they can be operated. PHASED OUT Subject to change without notice. www.tridonic.com 4 Data sheet 03/16-834-8 FL ballasts Electronic fixed output RFI Tridonic ballasts are RFI protected in accordance with EN 55015. To operate the luminaire correctly and and to minimise RFI we recommend the following instructions: • Connection to the lamps of the “hot leads” must be kept as short as possible (marked with *) • Mains leads should be kept apart from lamp leads (ideally 5–10 cm distance) • Do not run mains leads adjacent to the electronic ballast • Twist the lamp leads • Keep the distance of lamp leads from the metal work as large as possible • Connect functional earth, either over the terminal or over the mounting screw of the ballast • Mains wiring to be twisted when through wiring • Keep the mains leads inside the luminaire as short as possible Installation instructions IDC interface • solid wire with a cross section of 0.5mm² according to the specification from WAGO Horizontal interface • solid wire with a cross section of 0.5–1.5mm² according to the specification from WAGO • strip 7.5–8.5mm of insulation from the cables to ensure perfect operation of the screw terminals Defective lamp If a lamp is defective, the ballast switches off and goes into standby. There is an automatic restart once the lamp has been changed. 7.5 – 8.5 mm wire preparation: 0.5 – 1.5 mm² PC 1x28-55 W DD PRO sc Loosen wire leads 13, 14 max. 1.0 m (< 100 pF) leads 11, 12 max. 2.0 m (< 200 pF) For luminaires of protection class I: Earthing via ECG casing or earth terminal (according to IEC 60598) For luminaires of protection class II: No earthing required 3 4 5 14 13 12 11 11 12 13* 14* Additional information Additional technical information at www.tridonic.com → Technical Data Guarantee conditions at www.tridonic.com → Services Life-time declarations are informative and represent no warranty claim. No warranty if device was opened. PHASED OUT

Read more less

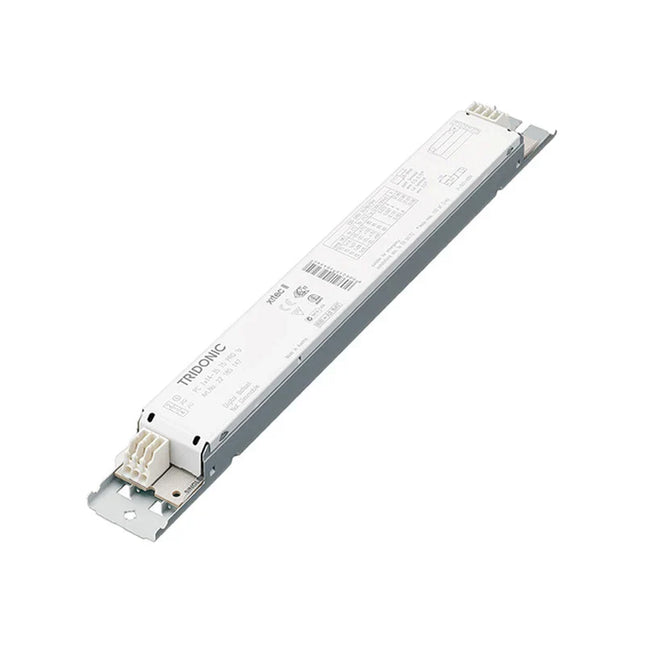

Tridonic PC154T5PRO Electronic HF low profile Ballast to run 1 x 54w T5 Tubes - PC 1/54 T5 PRO LP

Read more less

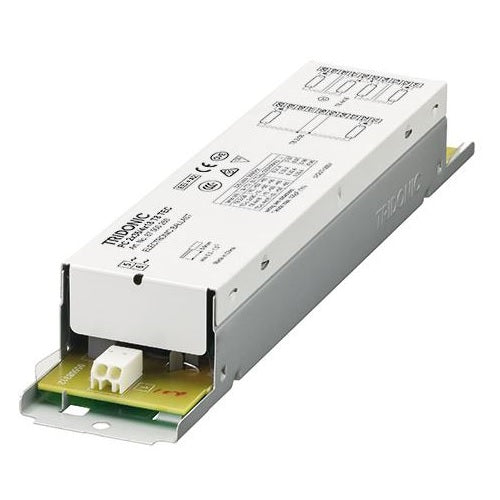

THIS ITEM IS NO LONGER AVAILABLE , WE CAN OFFER ALTERNATIVES AT 280MM  BUT NOTHING AT THIS SIZE 210MM     The Tridonic PC2X58T8TEC is an electronic ballast that will run both 2 x 58w T8 fluorescent tubes and 2 x 55w TCL compact fluorescent. It is not dimmable. Manufacturer : Tridonic Watts : 2x552X58 Volts : 240 Technology : HF Ballast Length : 210mm Diameter : 40mm Item size : L210 x W40 x H30mm Weee logo : Y Fix centres : 198mm Manufacturer code : 87500151 EAN Number : 9006210457918

Read more less

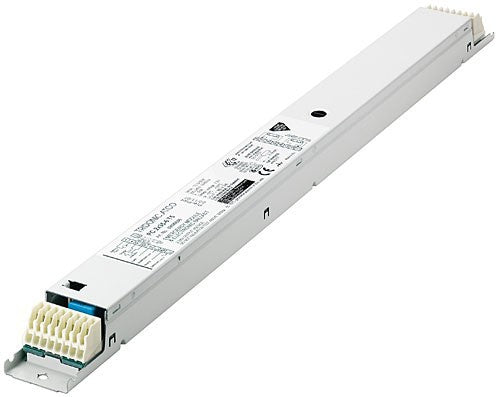

The Tridonic PC 2x54-6 T5 Combo is a combination electronic ballast and emergency lighting unit to run: 2 x 54 Watt T5 Fluorescent tubes PC T5 Combo Ballasts have the following features: - Low profile casing - Lightweight one-part emergency lighting unit - Simple wiring - No compatibility problems - 1 or 3 hour rated duration - Hot lamp restart in normal operation - Cathode heating in emergency mode - AC operation of all lamps - Automatic restart after relamping in normal operation - Green charge status display LED - Optional test switch - Checking the emergency lighting function by interrupting the unswitched phase - Short circuit proof battery connection - Polarity reversal protection for battery. This should be used with a 6 cell battery pack

Read more less

Electronic ballast with highest possible energy class CELMA EEI A2 BAT. It offers large temperature range, intelligent voltage guard, precise lamp operation using adjustment of lamp parameters, advanced SMART-Heating for minimum 50000 starts without replacement of lamps, constant luminous flux irrespective of fluctuations in mains voltage, designed for THD <10%, for luminaires of protection class I and protection class II. It features automatic start after replacement of defective lamps, safety shutdown of defective lamps and at end of lamp life (EOL 2), insulation displacement connection (IDC) terminal for rapid automatic or manual wiring and for emergency lighting systems as per EN 50172. · Rated lifespan: 100,000 hours · Flicker free warm start · Min/Max ambient working temperature: -25°C to 70°C · Degree of protection: IP20 · Operating voltage: 198-264V (AC), 176-280V (DC)

Read more less
