obsolete, you will be sent the ADV6 variant  28004903 Product description Ideal for linear and panel lights 2 terminals for serial wiring Perfectly uniform light, even if several LED modules are used together in a line Push terminals for quick and simple wiring of LED module to LED module Broad portfolio from extruded lenses and covers available HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output Long lifetime up to 72,000 hours 5 years guarantee (conditions at www.tridonic.com)

Read more less

Tridonic PC249T5PRO Electronic HF Ballast to run 2 x 49w T5 tubes - PC 2/49 T5 PRO low profile 22185154

Read more less

89800638 EM converterLED PRO MH/LiFePO4 250 V PRO version Note: LED driver supplied with duration link in 3 hours position. Duration link must be set before battery and mains connection. Product description Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 50 – 250 V Low profile casing (21 x 30 mm cross-section) For luminaire installation Nominal lifetime up to 100,000 h 5 years guarantee Properties Non maintained operation DALI interface for controlled testing and monitoring 1, 2 or 3 h rated duration Operating time selectable with plug (duration link) Compatible with most constant current LED drivers (see data sheet, LED driver compatibility) 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver Automatic shutdown of output if LED load is out of range Constant power output Two-colour status display LED Electronic charge system Deep discharge protection Short-circuit-proof battery connection Polarity reversal protection for battery provided by 3-pole connector Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries) Self-test: Status of the battery Status of the LED Function test Duration test Batteries High-temperature cells NiMH or LiFePO4 batteries LA or 18650 cells 4-year design life for NiMH batteries 1 years guarantee for NiMH batteries 4 – 8 years design life for LiFePO4 batteries 4 years guarantee for LiFePO4 batteries For battery compatibility refer to datasheet, battery selection

Read more less

obsolete , as long as you are using the dali feature please order the below  DALI Alternative The Tridonic PCA 2x26/32/42 TC ECO is a high frequency dimmable ballast to run:  2 x 26w Double Turn Compact Fluorescent Lamps 2 x 26w Triple Turn Compact Fluorescent Lamps 2  x 32w Triple Turn Compact Fluorescent Lamps 2 x 42w Triple Compact Fluorescent Lamps   Tridonic part number: 22185121

Read more less

river LC 57W 800-1050mA flexC lp ADV advanced series SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 800 – 1,050 mA Max. output power 57 W Up to 86 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Suitable for emergency escape lighting systems acc. to IEC 50172 Typical applications For linear/area lighting in office applications

Read more less

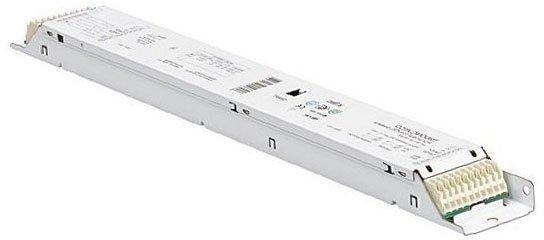

Tridonic Electronic HF Digital Dimming Ballast to run 2 X 36w T8 tubes - PCA 2/36 T8 ECO

Read more less

Tridonic PC236T8PRO Electronic Ballast 240v -50/60/0hz to run 2 x 36 T8 tubes - PC 2/36 T8 PRO

Read more less

EM powerLED SELFTEST 1 – 2 W Combined emergency lighting LED driver 1 – 4 W Screw-fix Clip-fix Screw-fix Clip-fix Product description Emergency lighting LED driver with selftest function For self-contained emergency lighting SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm) 5 years guarantee Properties Mains and emergency operation Self-test as per IEC 62034 Constant current mode With either screw or clip fastening (clip-fix) 1, 2 or 3 h rated duration Selectable operating time (jumper) Output power limitation Two-colour status display LED “Rest mode” function Simple set-up Automatic restart after LED replacement Electronic multi-level charge system SELV classified (outputs powerLED, battery, status LED, test switch) Polarity reversal protection for battery Deep discharge protection Very low energy consumption from the battery after activation of the deep discharge protection Short-circuit-proof battery connection Emergency lighting LEDs available Self-test: Status of the battery Status of the LED Charge condition Function test Duration test Batteries High-temperature cells 2 Ah NiMH batteries Cs cells 4 year design life 1 year guarantee For battery compatibility refer to data sheet Picture for illustrative purposes only

Read more less

Please click here to order  https://www.easy-controlgear.com/products/laht-ni-mh-4ah?_pos=3&_sid=2200419ab&_ss=r This is the popular 3 + 3 Cell Emergency Battery Stick. NiMH (Nickel Metal Hydride) 7.2v 4AH Twin Stick. It comes with Tags, Leads it will not be fitted with an AMP plug. This battery is the same as the more expensive Mackwell B906 battery without the premium price tag. Please note this battery does  come with the 4 x plastic support feet pictured.

Read more less

EM powerLED PRO DIM SR 45 W Combined emergency lighting LED driver Note: LED driver supplied with duration dip switch (2-way) in 3 hours position. Duration dip switch and I-SELECT 2 PLUG must be set before battery and mains connection. Product description Independent dimmable LED driver Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 20 – 50 V SELV for output voltage < 60 V DC Compact plastic casing with strain relief Properties Output power 6 – 45 W Constant current LED operation 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA Integrated emergency lighting unit 1, 2 or 3 h rated duration Operating time selectable with dip switch (2-way) Automatic shutdown of output if the forward voltage of the LED is out of range Two-colour status display LED Electronic multi-level charge system Pulse current charging for NiMH batteries Polarity reversal protection for battery Power-up fading at AC Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Deep discharge protection Short-circuit-proof battery connection 5 years guarantee Interfaces one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION) Terminal blocks: 45° push terminals Batteries High-temperature cells NiCd or NiMH batteries D, Cs, LA or LAL cells Battery box for independent use 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

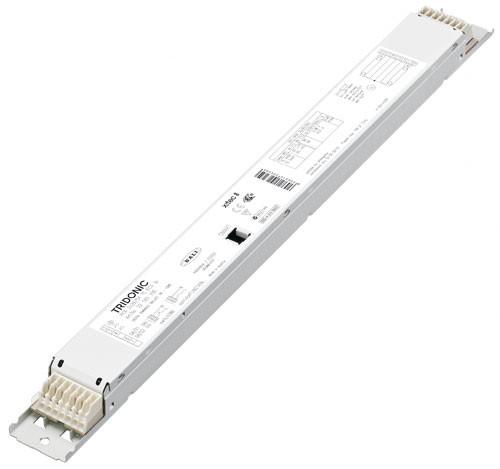

Obsolete, If you are using the dali dimming feature please order the EL2X80IDIM , please note this is dali dimming only and not DSI dimming  Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty

Read more less

Driver LC 81W 1200-1750mA flexC lp ADV advanced series SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 1,200 – 1,750 mA Max. output power 80.5 W Up to 87 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Suitable for emergency escape lighting systems acc. to IEC 50172 Typical applications For linear/area lighting in office applications
