EM powerLED CPS FX SR 50W 50V 89800437
Product description• Independent fixed output LED Driver for mains operation withintegrated Simple CORRIDOR FUNCTION (CF)• Emergency lighting function for use in central battery systems• For LED modules with a forward voltage of 15 – 50 V• SELV for output voltage < 60 V DC• Compact plastic casing (209 x 82 x 34 mm) with strain relief• 5 years guaranteeProperties• 4.9 – 50 W output power• Constant current LED operation• 300 – 1,400 mA output current selectable with I-SELECT PLUGin steps of 50 mA• Simple CORRIDOR FUNCTION (CF) with 10 % light level• Automatic shutdown of output if LED load is out of range• For emergency lighting systems as per EN 50172
28001233 LCU 48V 75W DC-STR DIM SR
Product description
Independent dimmable DC-String constant voltage LED driver
Compatible with other DC-String components
DALI bridge with DC powerline communication (PLC)
one4all interface (corridorFUNCTION, switchDIM, DALI, DSI)
Max. output power 75 W
Up to 91 % efficiency
Nominal lifetime up to 50,000 h
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)
87501053
LC 200W 24V SC SNC2
Product description
Constant voltage LED driver
Output voltage 24 V
Max. output power 200 W
Dimmable via external PWM LED dimmers attached on output side
For luminaires of protection class I and protection class II
The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
Nominal lifetime up to 50,000 h
5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

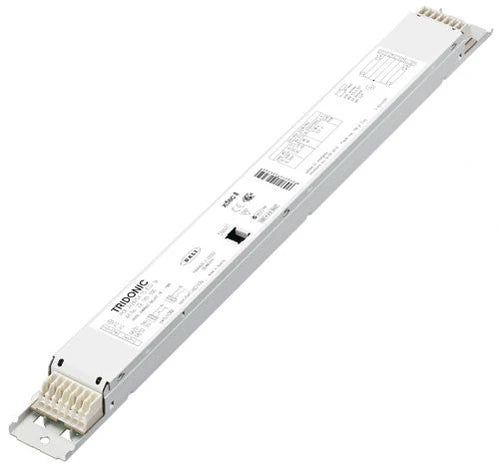

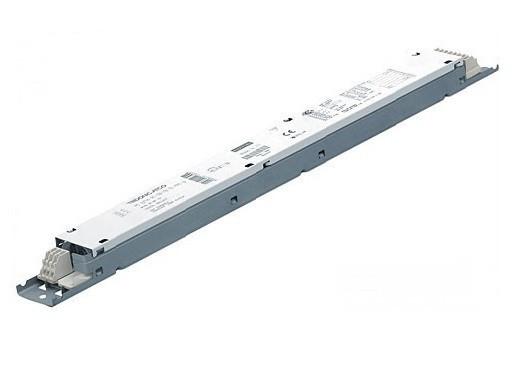

PCA 2x80 T5 ECO lp Y II 22185098
Product description• Processor-controlled ballast with y II inside• Highest possible energy class CELMA EEI = A1 BAT1• Noise-free precise control via DALI orDSI signal, switchDIM or corridorFUNCTION• Nominal life up to 100,000 h (at ta 50 °Cwith a failure rate max. 0.2 % per 1,000 h)• Multi-lamp management• OEM-specific reserved memory areas• 5 years guaranteeInterfaces• DALI• DSI• switchDIM (with memory function + selectable dimming rate)• corridorFUNCTION (3 preprogrammed profiles)• Integrated SMART interface for function withSMART Sensor 5D 19f and corridorFUNCTION plugsFunctions• Intelligent Temperature Guard (overtemperature protection)• Intelligent Voltage Guard (overvoltage indicationand undervoltage shutdown)• Optimum filament heating in any dimmer setting• Disconnection of filament heating from a dimming level of approx.90 % for maximum energy efficiency (SMART-Heating concept)• corridorFUNCTION with ambient light control• Automatically triggered emergency lighting value in DC mode, 15 %• For emergency lighting systems as per EN 50172• Automatic start after replacement of defective lamps• Automatic shutdown if the lamp is faultyÈStandards, page 3Wiring diagrams and installation examples, page 8PCA T5 ECO lp Y II, 14 – 80 WECO T5 T5 TC-L6Ø4,1LD21 4,130side fixing featureTechnical dataMains voltage range 220 – 240 VAC voltage range 198 – 264 VDC voltage range 176 – 280 V (lamp start ≥ 198 V DC)Mains frequency 0 / 50 / 60 HzOvervoltage protection 320 V AC, 1 hTyp. power input on standby < 0.2 WProtective hot restart 0.5 s for AC / 0.2 s for DCDimming range 1 – 100 %Lamp start possible from 1 %Operating frequency ~ 40 – 130 kHzType of protection IP20Ordering dataType Article number Packaging,cartonPackaging,palletWeightper pc.For luminaires with 1 lampPCA 1x14/24 ECO lp Y II 22185094 10 pc(s). 760 pc(s). 0.342 kgPCA 1x21/39 T5 ECO lp Y II 22185101 10 pc(s). 760 pc(s). 0.233 kgPCA 1x28/54 T5 ECO lp Y II 22185099 10 pc(s). 760 pc(s). 0.242 kgPCA 1x35/49/80 T5 ECO lp Y II 22185096 10 pc(s). 760 pc(s). 0.243 kgFor luminaires with 2 lampsPCA 2x14/24 ECO lp Y II 22185095 10 pc(s). 760 pc(s). 0.272 kgPCA 2x21/39 T5 ECO lp Y II 22185102 10 pc(s). 760 pc(s). 0.270 kgPCA 2x28/54 T5 ECO lp Y II 22185100 10 pc(s). 640 pc(s). 0.332 kgPCA 2x35/49 T5 ECO lp Y II 22185097 10 pc(s). 760 pc(s). 0.260 kgPCA 2x80 T5 ECO lp Y II 22185098 10 pc(s). 640 pc(s). 0.343 kgPH

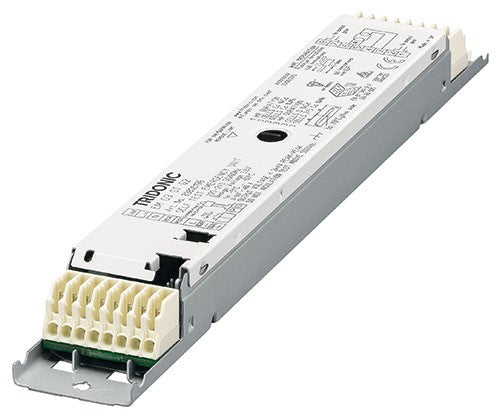

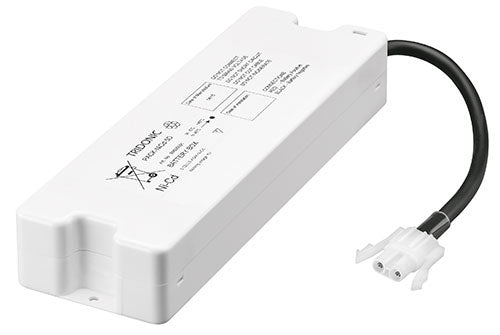

The Tridonic EM 04 Basic lp is one of the latest emergency inverters on the market. Designed to be used with linear and compact fluorescent lamps between 8-36w with a 4 cell NiCad battery. Can be used with non dimmable, dimmable and DALI Dimmable setups. See link for all product features Tridonic EM 04 Basic lp Manufacturer part number 89800202

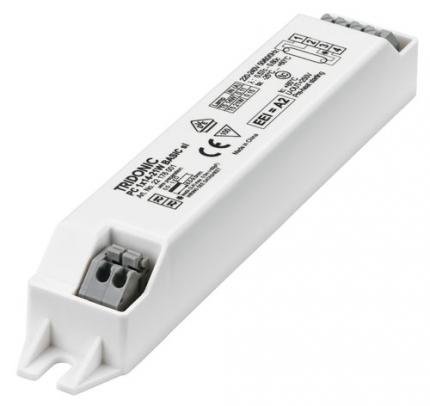

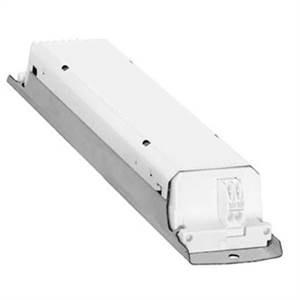

The most important product properties of the TRIDONIC PC 1x5-16W BASIC sl at a glance: - CELMA energy efficiency class A2 / A3 - Nominal service life up to 50,000 h (at ta 50 °C and a failure rate of ? 0.2% per 1,000 h) - Large temperature range (See table for values) - Automatic restart after lamp replacement - Safety shutdown of defective lamps and at the end of lamp life - Temperature protection in accordance with EN 61347-2-3 C5e
Constant current LED driver
Tested acc. to salt spray test (ISO 9227)
Dimmable via 0 ... 10 V interface (incl. stand-by)
Dimming range 1 to 100 %
Adjustable output current between 200 and 1,400 mA with NFC
Max. output power 150 W
Up to 90 % efficiency
Nominal lifetime up to 50,000 h
