Speedy TE-0105 C101..

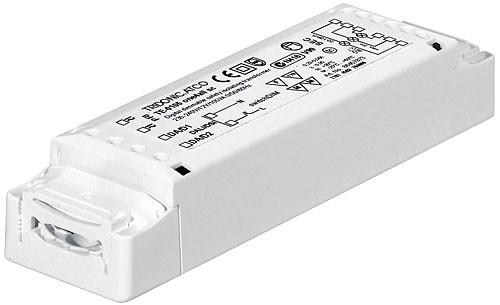

Tridonic 24034874 Speedy TE-0105 C101 35-105VA Dimmable 12V Transformer
Product description
Compact dimensions 101.5mm L 51mm W 29.5mm H
35-105W
Short-circuit shutdown feature with automatic restart
Overtemperature and overload protection with power regulation
Large connection compartment
Double assignment of the terminal possible
Cage clamp terminals for rigid and flexible wires
Double terminals on the secondary side
Rapid installation of cable clamp and terminal cover, no tool required
Casing: polycarbonate, dark blue/white
Product description
For downlights
Safety glass for 5,000 lm version
Built-in LED module
Cooling required
Flexible operating mode
HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output
Combined emergency LED driver for manual testing
For self-contained emergency lighting
Can be either used build-in or independent with clip-on strain-relief (see accessory)
Max. output power 32 W
Nominal lifetime up to 100,000 h
5 years guarantee
Functions
Adjustable output current between 350 and 700 mA via I-SELECT 2 plugs
Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
Suitable for emergency escape lighting systems acc. to EN 50172
1 or 3 h rated duration depending on connected battery
Constant power output in emergency mode
Battery management
Intelligent charge system
Deep discharge protection
Temperature protection
Polarity reversal protection for battery provided by 3-pole connector
Batteries
LiFePO4 batteries with Tridonic LiFeGuard
Temperature-protected
Overcharge-/Overdischarge protection
Ensures safety in use
Up to 8 year design life
3 years guarantee
For battery compatibility refer to datasheet, battery selection
Product description
Dimmable constant current LED driver (SELV)
Independent driver with strain-relief housing
Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
Dimmable via leading edge and trailing edge phase dimmers
Trailing edge is a benefit in terms of noise compared to leading edge
Dimming range 5 to 100 % (depending on dimmer)
For luminaires with F or M and MM as per EN 60598, VDE 0710 and VDE 0711
Max. output power 7.6 W
Output current 180 mA
Nominal lifetime up to 50,000 h
5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Compact drivers
Data sheet
Product description
Ready-for-use resistor to set output current value
Compatible with LED driver featuring I-select 2 interface; not compatible with I-SELECT (generation 1)
Resistor is base insulated
Resistor power 0.25 W
Current tolerance ± 2 % additional to output current tolerance
Compatible with LED driver series PRE and EXC
Show more

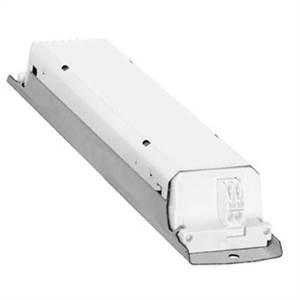

The Tridonic PC 1x28-34 HO DD COMBO is a combination electronic ballast and emergency lighting unit to run 1 x 28w 2D 4Pin compact fluorescent. They have a 3 hour rated duration and should be used with a 4 cell battery pack. These ballasts come with a 5-year warranty. Tridonic article number: 89899958 Dimensions: 123 x 79 x 31mm
The Tridonic Tridonic LCA 60w 900-1750mA one4all SR PRE is a 60W Tridonic Dali dimmable LED driver with an adjustable output current of 900-1750mA. This driver has a max output power of 60w and an average life of 100,000 hours.
Product description
Capacitive Touchpanel
High-quality appearance with real glass display
Multiple control modules are possible in a DALI system
Power supply via DALI line
Double terminals for through wiring
Adjustment of DALI lighting group with “Group” rotary switch
Individual adjustment of start number of lighting scenes with “Scene” rotary switch
5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Type TW:
Tunable white (colour converter) control (colour temperature along the Planckian Locus, Colour temperature Tc)
EAN/UPC: 9006210642307
Country of Origin: CN
