THIS ITEM IS OBSOLETE,IF YOU ARE USING THE DALI DIMMING FEATURE THE BELOW WILL WORK   Dali Alternative  HOWEVER IF ITS THE DSI DIMMING FEATURE THEN WE ARE UNABLE TO OFFER ANY ALTERNATIVE   Digital Dimming Ballast to run 2 X 35/49w T5 tubes - PCA 2x35/49 T5 ECO - 22185097 Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty

Read more less

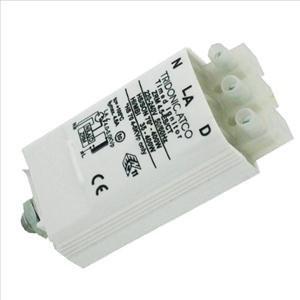

70-250w SON Sodium - 35-250w Metal Halide Ignitor

Read more less

Tridonic PC11824TCLPRO 1x18/24w PLL Ballast - PC1/18/24TLCPRO - 22176068

Read more less

DALI XC DALI control module with switch inputs Product description DALI input controller 4 independent inputs for floating contacts For connecting standard momentary-action switch or switches Adjustable operating mode and range via 2 rotary selector Multiple DALI XCs possible on the DALI line Power supply via DALI line Connection wires according to the terminal colours with 25 cm length included 5 years guarantee   Data sheet

Read more less

next Gen replacement  for the  89603242  Product description Ideal for linear and panel lights 2 terminals for serial wiring Perfectly uniform light, even if several LED modules are used together in a line Push terminals for quick and simple wiring of LED module to LED module Option backside terminal Broad portfolio from extruded lenses and covers available HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output Long lifetime up to 72,000 hours 5 years guarantee

Read more less

ZRM 4.5-ES/C A standard non-dimmable 35-400 Watt Standard Pulse Ignitor from Tridonic for Metal Halide and Sodium Lamps that do not feature an internal starter. An integrated digital three-start counter stops the ignition process after three unsuccessful lamp starts thereby avoiding overloading the control gear with high-voltage pulses.   Technical Specifications Control Gear Type Ignitor Manufacturer Tridonic Dimming? Non-Dimmable No. Of Lamps Single (1x) Height 27 mm Lamp HPS: 100-400w Length 85 mm Striking Distance (m) 4 Type Control Gear Width 38 mm Manufacturers Part Number 87500082

Read more less

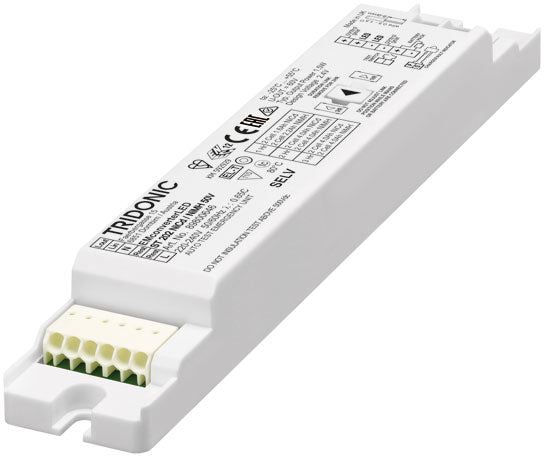

EM converterLED ST NiCd/NiMH 50 V EM conversion Data sheet Product description Replaces  the 89800182 Self-contained emergency lighting LED driver with self-test function Non maintained operation For LED modules with a forward voltage of 10 – 54 V SELV for output voltage < 60 V DC For luminaire installation Compatible with Tridonic's LLE FLEX modules (ADV, EXC) EM = Emergency Nominal lifetime up to 100,000 h

Read more less

1x21/39w T5 Excel Ballast - Tridonic - 22185110 - PCA12139T5 EXCEL

Read more less

THIS ITEM IS OBSOLETE,IF YOU ARE USING THE DALI DIMMING FEATURE THE BELOW WILL WORK   Dali Alternative  HOWEVER IF ITS THE DSI DIMMING FEATURE THEN WE ARE UNABLE TO OFFER ANY ALTERNATIVE   Digital Dimming Ballast to run 2 X 35/49w T5 tubes - PCA 2x35/49 T5 ECO - 22185097 Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty

Read more less

Please note this item is obsolete, If you are using dali dimming please use the ALTERNATIVE If you are using DSI dimming then please do not order as we aare unable to supply   Digital Dimming Ballast to run 2 X 28/54w T5 tubes - PCA 2x28/54 T5 ECO - 22185100 Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty 22185100

Read more less

Driver LCA 100W 1100–2100mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Adjustable output current between 1,100 and 2,100 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 100 W Up to 92 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For applications in downlight, panel and low Bay / high Bay luminaires

Read more less

Driver LC 100W 250–700mA flexC lp EXC excite series non-SELV Product description Constant current LED driver for luminaire installation For luminaires of protection class I and protection class II Adjustable output current between 250 and 700 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 100 W Up to 95 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces ready2mains (configuration via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Intelligent Voltage Guard (overvoltage and undervoltage monitoring) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less
