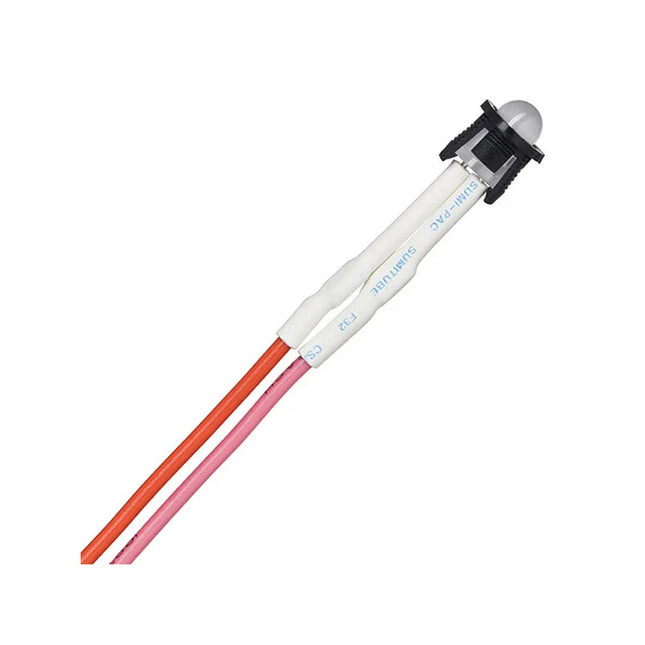

Product Details Status indication bi-colour LED, with lead and connection plug. Green: system OK, red: fault. · Plug connection

Read more less

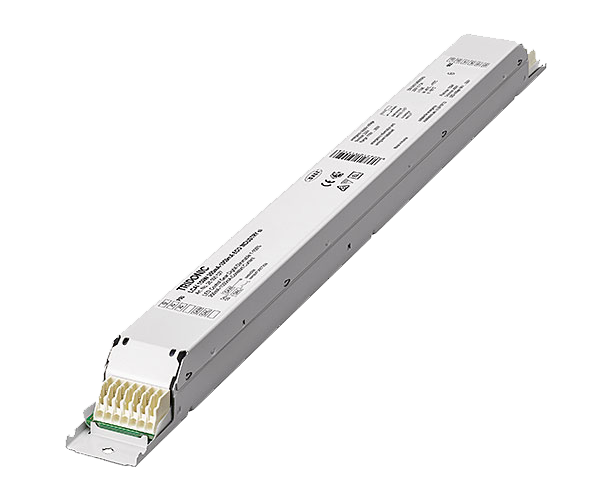

Digital Dimming Ballast to run 1 X 35/49/80w T5 tubes - PCA 1x35/80 T5 ECO - 22185096

Read more less

EM powerLED PRO DIM SR 45 W Combined emergency lighting LED driver Note: LED driver supplied with duration dip switch (2-way) in 3 hours position. Duration dip switch and I-SELECT 2 PLUG must be set before battery and mains connection. Product description Independent dimmable LED driver Emergency lighting LED driver with DALI interface and automatic test function For self-contained emergency lighting For LED modules with a forward voltage of 20 – 50 V SELV for output voltage < 60 V DC Compact plastic casing with strain relief Properties Output power 6 – 45 W Constant current LED operation 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA Integrated emergency lighting unit 1, 2 or 3 h rated duration Operating time selectable with dip switch (2-way) Automatic shutdown of output if the forward voltage of the LED is out of range Two-colour status display LED Electronic multi-level charge system Pulse current charging for NiMH batteries Polarity reversal protection for battery Power-up fading at AC Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Deep discharge protection Short-circuit-proof battery connection 5 years guarantee Interfaces one4all (DALI DT 1 & 6, DSI, switchDIM, corridorFUNCTION) Terminal blocks: 45° push terminals Batteries High-temperature cells NiCd or NiMH batteries D, Cs, LA or LAL cells Battery box for independent use 4 year design life 1 year guarantee For battery compatibility refer to data sheet

Read more less

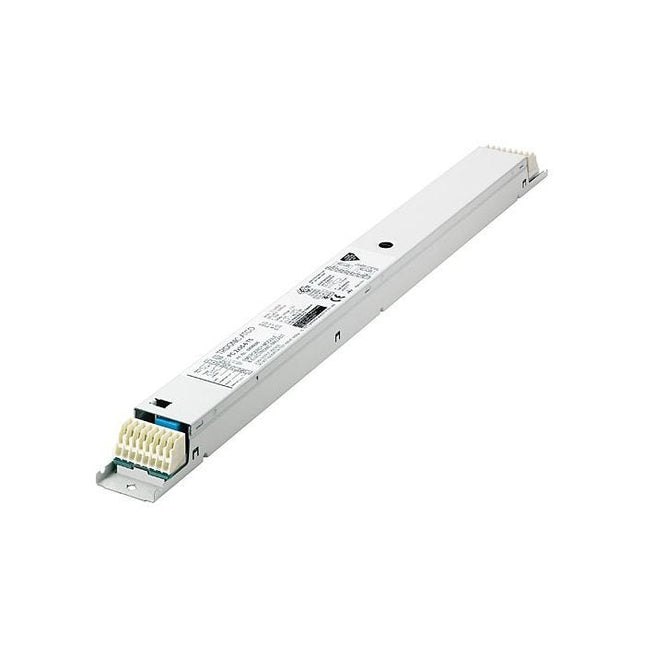

Digital Dimming Ballast to run 2 X 21/39w T5 tubes - PCA 2x21/39 T5 ECO - 22185102 Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty

Read more less

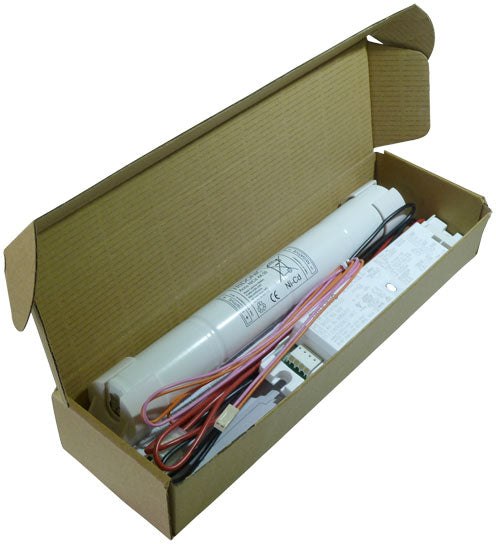

Product description Kit with emergency lighting LED driver, battery for 3 h duration and indication LED For self-contained emergency lighting For LED modules with a forward voltage of 10 – 54 V SELV for output voltage < 60 V DC Low profile casing (21 x 30 mm cross-section) For luminaire installation EM = Emergency

Read more less

Driver LCBI 10W 180/350/500mA PHASE-CUT/1–10V SR advanced series Product description Independent dimmable LED driver Constant current LED driver Dimmable via leading edge and trailing edge phase dimmers Dimmable via 1 ... 10 V Output dimmed analogue (current amplitude) Dimming range typ. 10 to 100 % (depending on dimmer) For luminaires of protection class I and protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e SELV Output current 180, 350 or 500 mA Output power 10 W Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Screw terminal Functions Overload protection Short-circuit protection No-load protection No output current overshoot at mains on/off

Read more less

Tridonic Electronic Magnetic Choke 380 - 415v to run 2000w Metal Halide lamps - OGLI 2000W 180 B234 Igniter to suit   https://www.easy-controlgear.com/products/bag-380mzn2000s-bg-zg-bag-380-mzn-2000-s?_pos=1&_sid=3a8a957b0&_ss=r Capacitor required    https://www.easy-controlgear.com/products/cap-60uf-450v-mst-025?_pos=3&_sid=72cf6ff12&_ss=r

Read more less

Obsolete, If you are using the dali dimming feature please order the EL2X80IDIM , please note this is dali dimming only and not DSI dimming  Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty

Read more less

Tridonic Combined Electronic ballast to run 3/4 x 14w T5 Combo (3h 3 Cell) 89800002 Rated supply voltage 220 – 240 VMains frequency 50 / 60 HzMains voltage changeover threshold according to EN 60598-2-22tc point max. 70 °CAmbient temperature ta 0 ... 50 °COperating frequency > 30 kHzBattery charging time 24 hCharge current 210 mADischarge current 1 h 2.4 ADischarge current 3 h 1.1 AMin. lamp starting temperature (normaloperation)-15 °CMin. lamp starting temperature (emergency mode)0 °CType of protection IP20

Read more less

RANGE : INDOOROUTPUT CURRENT : 350MA-1050MAPOWER : 150WINPUT : 220-240VACEFFICIENCY : ≥95%POWER FACTOR : ≥0.98OPERATING FREQUENCY : 50/60HZFUNCTION : DALI DIMMERIP RATE : IP20DIMENSION : 425X30X28LIFE TIME : 50000HRSWORKING TEMP : -40°C~+70°CWARRANTY PERIOD : 5YEARSWARRANTY TYPE : REPLACESAFTY CLASS : I

Read more less

Driver LC 81W 1200-1750mA flexC lp ADV advanced series SELV Product description LED Constant current LED driver for luminaire installation New version DC operating with EL marking For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 1,200 – 1,750 mA Max. output power 80.5 W Up to 87 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces Terminal blocks: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Surge protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Suitable for emergency escape lighting systems acc. to IEC 50172 Typical applications For linear/area lighting in office applications

Read more less

DALI PCD 1-300 one4all G2 Current Variant  PCD-1-380 will be supplied 28004625 DALI actuator Product description Digital leading-edge and trailing-edge phase dimmer Total connected load: 1 – 300 VA one4all input: DALI, DSI, switchDIM and corridorFUNCTION input Zero cross switching supported 1 dimmed phase (output) With automatic load detection Surface-mounted casing Suitable for operation with LED retrofit bulbs 5 years guarantee
