Product description Ideal for linear and panel lights 2 terminals for serial wiring Perfectly uniform light, even if several LED modules are used together in a line Push terminals for quick and simple wiring of LED module to LED module Option backside terminal Broad portfolio from extruded lenses and covers available Long lifetime up to 72,000 hours

Read more less

Driver LCO 165W 200–1050mA 285V one4all NFC C EXC3 excite NFC outdoor series Product description Dimmable built-in constant current LED driver Dimming range 5 – 100 % (min. 10 mA) For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains Programmer Max. output power 165 W Up to 93 % efficiency Lowest power input on stand-by < 0.16 W Nominal lifetime of 100,000 h and 8 years guarantee Interfaces Near field communication (NFC) one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration via mains) U6Me2 (configuration of chronoSTEP 2 via mains) Terminal blocks: 45° / 0° push terminals Functions Adjustable output current in 1-mA-steps (NFC, DALI, ready2mains) Programmable chronoSTEP: times and levels (NFC, DALI, U6Me2, ready2mains) Dimming through mains voltage (inputDIM) Enhanced constant light output function (eCLO) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Configurable external temperature management (ETM) Intelligent Temperature Guard (ITG) Intelligent Voltage Guard Plus (IVG+) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 programmer Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency In-field programming possible after installation with NFC interface and ready2mains High overvoltage protection: up to 10 kV asymmetric (protection class I and II) Typical applications Road, street and industry

Read more less

Driver LCA 60W 900–1750mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 900 – 1,750 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI Max. output power 60 W Up to 90 % efficiency Power input on stand-by < 0.2 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

  This item is obsolete , you will be sent the Osram alternative  This is what you will be sent   TRANSFORMER 20-105VA - Tridonic TE0105 one4all SC -

Read more less

Please select the MA rating you will be running it at and we will include the correct resistor   Product description Independent fixed output LED driver For luminaires of protection class I and protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Adjustable output current between 700, 900 and 1,050 mA Max. output power 42 W Up to 88 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces Input terminals: 0° screw terminals Output terminals: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Burst protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application

Read more less

24v LED Constant Voltage LED Control Gear - Tridonic - 28000413 - LCU 96w 24v Obsolete you will be sent  Alternative

Read more less

Obsolete replaced by 28002497, this what you will be sent . if you know what Ma you are using you may need to order  the relevant resistor  . The Tridonic LCI 42w 900mA TEC SR LED driver is a fixed output, constant current LED driver with a maximum output power of 42w. These drivers have an average life of 50,000 hours and a 5 year guarantee. The LCI 42w 900ma TEC has over temperature and overload protection, as well as short circuit and no-load protection. Tridonic article number: 87500246 Obsolete replaced by 28002497, this what you will be sent . if you know what Ma you are using you may need to order  the relevant resistor  .

Read more less

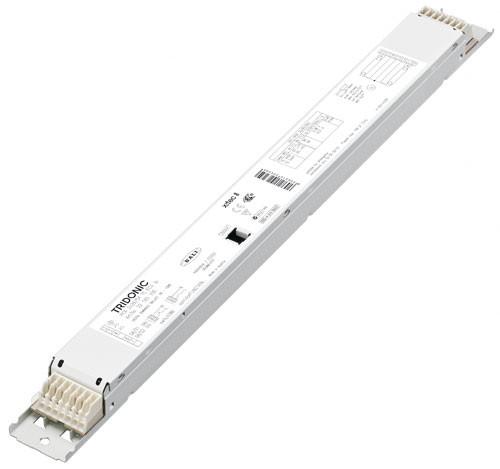

Digital Dimming Ballast to run 1 X 21/39w T5 tubes - PCA 1x21/39 T5 ECO - 22185101 Product description Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI = A1 BAT (1) Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) Multilamp management OEM-specific reserved memory areas 5 years guarantee Interfaces DALI DSI switchDIM (with memory function + selectable dimming rate) corridorFUNCTION (3 preprogrammed profiles) Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs Functions Intelligent Temperature Guard (overtemperature protection) Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown) Optimum filament heating in any dimmer setting Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) corridorFUNCTION with ambient light control Automatically triggered emergency lighting value in DC mode, 15 % For emergency lighting systems as per EN 50172 Automatic start after replacement of defective lamps Automatic shutdown if the lamp is faulty

Read more less

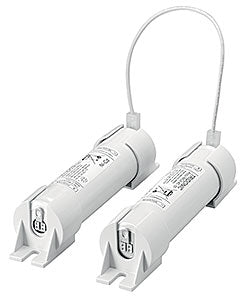

Tridonic Electronic Emergency Lighting Module 230/240v 50/60/Hz Low Profile obsolete replaced with the  89800207 which is what you will be supplied with

Read more less

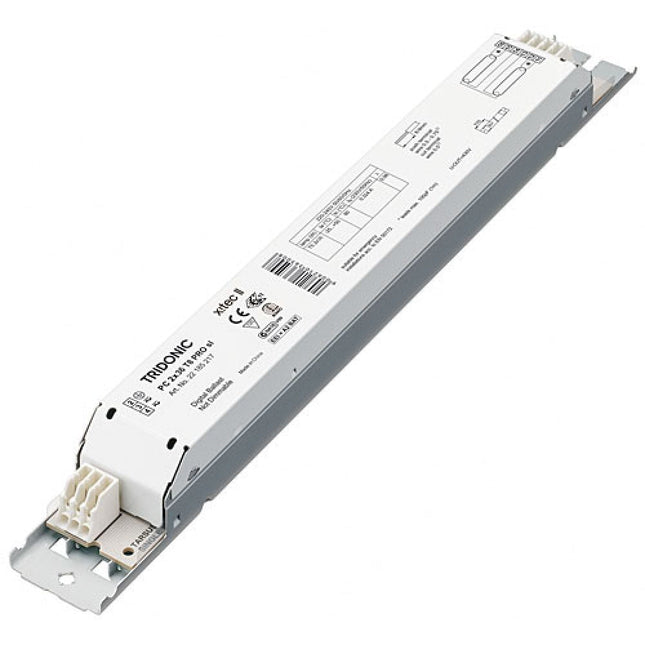

OBSOLETE  Please order the below as an alternative , please note slightly longer  https://www.easy-controlgear.com/products/osram-qtp-optimal-2x18-40-4008321873767?_pos=1&_sid=50faa2f63&_ss=r  Tridonic PC230T8PRO Electronic Ballast to run 2x30w T8 Tubes - PC 2/30 T8 PRO

Read more less

OBSOLETE , IF using DALI dimming the below will suffice   DALI Alternative   If using DSI no alternative available    Tridonic Electronic compact dimming ballast to run 1 x 26-57w TC Compact The Tridonic PCA 1x26-57 TC ECO xitec II is a high frequency dimmable ballast for use with DALI/DSI/switchDIM interfaces. Compatible with the following lamps: 1 x 40w T5 Circular Lamp 1 x 26w Double Turn Compact Fluorescent Lamp 1  x 26w Triple Turn Compact Fluorescent Lamp 1 x 40w Long Single Turn Compact Fluorescent Lamp 1 x 40w T5 Circular Fluorescent Lamp 1 x 32w Triple Compact Fluorescent Lamp 1 x 42w Triple Turn Compact Fluorescent Lamp 1 x 57w Triple Turn Compact Fluorescent Lamp Tridonic part number: 22185120

Read more less

Product description Independent fixed output LED driver For luminaires of protection class I and protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Adjustable output current between 700, 800 and 1,050 mA Max. output power 35 W Up to 87.5 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces Input terminals: 0° screw terminals Output terminals: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Burst protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application
