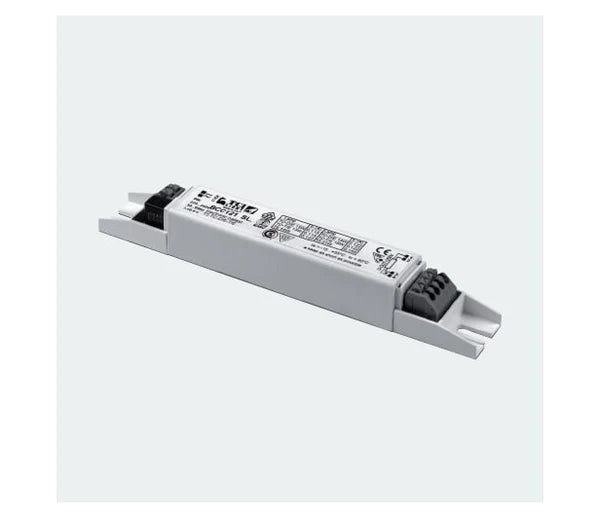

Linear Electronic Ballast T5 24W , 2G11 18-24W, T8 14-15-18W
Description- Compact size electronic ballast for built-in use - Suitable for connection to emergency equipment in compliance with EN-60598-2-22 - Can be used for lighting equipment in protection Class l and ll - Push in connector with retaining springs. Connector cross section 0.5 - 1.5 mm2 - Start with pre-heating for longer lamp life (cut-off function) - Protection against lamp disconnection (re-start with pre-heating), lamp failure or end of life - Ballast can be secured with slots for M4 screws
Specification
Lamp
T5
Cap
G5
Power (W)
24
Length (mm)
150
Width (mm)
22
Height (mm)
19
DATA SHEET
Product description• Processor-controlled ballast with y II inside• Highest possible energy class CELMA EEI = A1 BAT1• Noise-free precise control via DALI orDSI signal, switchDIM or corridorFUNCTION• Nominal life up to 100,000 h (at ta 50 °Cwith a failure rate max. 0.2 % per 1,000 h)• Multi-lamp management• OEM-specific reserved memory areas• Extended DALI commands• 5 years guaranteeInterfaces• DALI• DSI• switchDIM (with memory function + selectable dimming
• corridorFUNCTION (3 preprogrammedprofiles + individually programmable)• Integrated SMART interface for function with allSMART Sensors and SMART plugs of the y II rangeFunctions• Intelligent Temperature Guard (overtemperature protection)• Intelligent Voltage Guard (overvoltage indicationand undervoltage shutdown)• Optimum filament heating in any dimmer setting• Disconnection of filament heating from a dimming level of approx.90 % for maximum energy efficiency (SMART-Heating concept)• Fade rates between 100 ms and 90 s (min. – max.)• corridorFUNCTION with ambient light control• Automatically triggered emergency lighting value in DC mode 15 %,can be set between 1 and 100 %• For emergency lighting systems as per EN 50172• Automatic start after replacement of defective lamps
The Osram QTi DALI 4x18/220-240 DIM is a digital dimmable ballast to run 4 x 18w T8 Tubes. These ballasts have an average life of 100,000 hours, offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting.

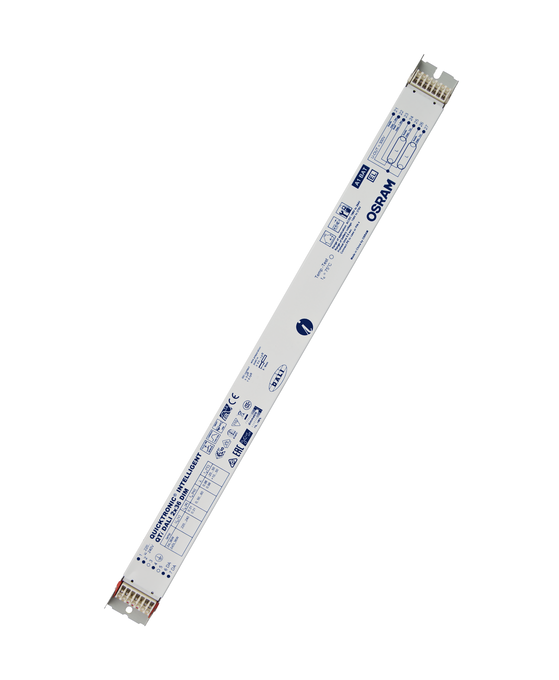

The Osram QTi 1x28/54/220-240 DIM is a 1-10v intelligent dimmable ballast to run 1 x 28w or 54w T5 Tubes. These ballasts have an average life of 100,000 hours, offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting.
Product benefits
Same luminous flux with direct and alternating current
Perfect lamp start for applications with motion sensors
Dimming of amalgam lamps without flickering or reduced lifespan
Very high efficiency thanks to cut-off technology
Automatic restart after lamp replacement
ECGs comply with MINERGIE standard due to very low standby consumption
Configurable emergency power characteristics
The Philips HF-P 113 PL-C is a non-dimmable high frequency ballast to run:1 x 13w lamps.This ballast has a flicker free warm-start circuit,50% longer lamp life and an automatic stop circuit (safety stop). The Philips HF-P PL-T/C range is suitable for Department stores,Suprmarkets, Hotels and Hospitals, It is also for use in emergency installations with re-ignition.
